Machine Tools > Millers & Milling Machines > Vertical Millers    < Back

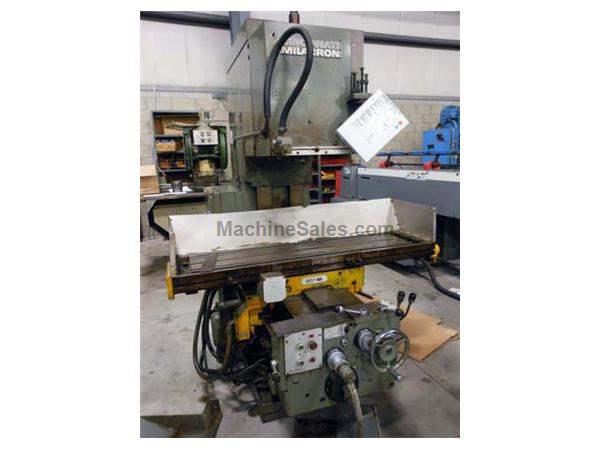

1975 - CINCINNATI 207MK VERT MILL - 12" X 53" - $RFQ

Item Number: #00068077
1975 - CINCINNATI 207MK VERT MILL - 12&quot; X 53&quot;





1975 - CINCINNATI 207MK VERT MILL - 12" X 53"

Stock Code:  DK-13466
Price: $RFQ
Subcategory:

Vertical Millers

Table width12"
Table length53"
Year of Manufacture:  1975
Manufacturer:  Cincinnati-207Mk-Vert-Mill
Model:  207MK
Condition: Used

SPECIFICATIONS

TABLE
WORKING SURFACE: 53.5″ X 11.8″
SIZE OVERALL: 53.5″ X 11.8″

RANGE
LONGITUDINAL: 28″
CROSS: 13.7″
VERTICAL: 18.7″
QUILL: 3.9″

DISTANCES
SPINDLE FACE TO TABLE TOP: 20.7″ MAXIMUM
0″ MINIMUM

SPINDLE
SPINDLE NOSE: NO. 50 STANDARD
HOLE FOR DRAW-IN BOLT: 1.06″
NUMBER OF SPEEDS: 16
SPEED RANGE: 25 – 1,500 RPM
NUMBER OF FEEDS: 16

FEED RANGE
LONGITUDINAL & CROSS: 1/2 TO 60 IPM
VERTICAL: 1/4 TO 30 IPM

RAPID TRAVERSE
LONGITUDINAL & CROSS: 150 IPM
VERTICAL: 75 IPM

DRIVE
SPINDLE DRIVE MOTOR: 7.5 HP
FEED DRIVE MOTOR: 5.5 HP

GENERAL
FLOOR SPACE: 89″ X 79″
WEIGHT, APPROX: 6,550 LBS
ELECTRICS: 440 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH
MICROMETER ADJUSTMENT ON MANUAL QUILL FEED
AUTOMATIC BACKLASH ELIMINATOR
TOTAL OF (3) CONTROL DOGS, INTERCHANGEABLE BETWEEN THE LONGITUDINAL, CROSS, & VERTICAL FEED
(3) RAPID TO FEED FLIPPER DOGS
(3) RIGHT HAND FEED TO STOP DOGS
(3) LEFT HAND FEED TO STOP DOGS

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
