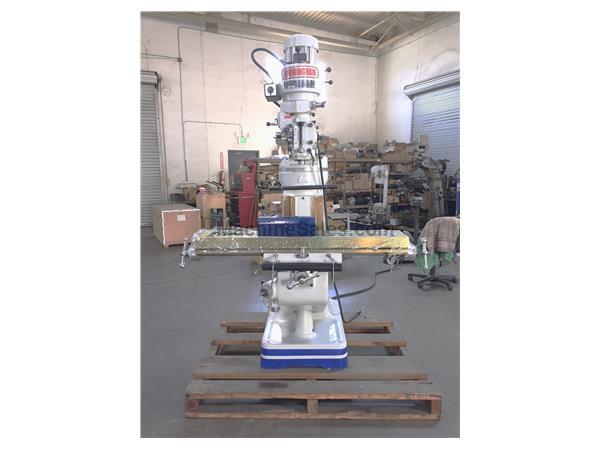

49" Table 3HP Spindle Birmingham BPS-1649 Belt Drive Head VERTICAL MILL, 3 Phase - $4,600

Item Number: #00019283
49&quot; Table 3HP Spindle Birmingham BPS-1649  Belt Drive Head VERTICAL MILL,  3 Phase





49" Table 3HP Spindle Birmingham BPS-1649 Belt Drive Head VERTICAL MILL, 3 Phase

Stock Code:  139430
Price: $4,600
Subcategory:

Vertical Millers

Manufacturer:  Birmingham
Model:  BPS-1649 BELT DRIVE HEAD
Condition: Used

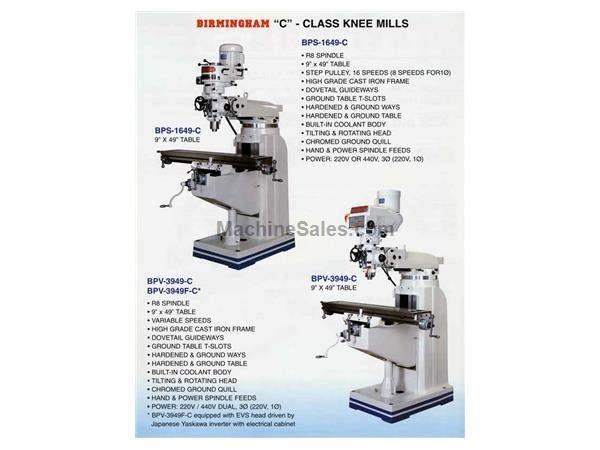

New Birmingham 9" x 49" Vertical Milling Machine


Model: BPS-1649





A Superior Taiwan-Made Head With the Cost Savings of a Chinese Body


ISO 9002


Safety / Reliability / Performance


BEST BUY - BEST FEATURES





Specifications:


Table Size: 9" x 49"


Table Load Capacity: 600 lbs.


Table T-Slot Size: 5/8" x 3


Longitudinal Travel Hand Only: 35-1/2"


Longitudinal Travel w/ Power Feed: 33"


Cross Travel: 13-1/4"


Vertical Travel: 16"


Ram Travel: 12"


Quill Feed Speeds: 0.0015", 0.003", 0.006"/Rev.


Quill Travel: 5"


Spindle Taper: R8


Quill Diameter: 3-3/8"


Head Swivel RH/LH: 90 Deg / 90 Deg


Head Tilting F/B: 45 Deg / 45 Deg


Ram Turret Swivel: 360 Degrees


Spindle Speeds Type: Step Pulley


Spindle Speeds (RPM): 90-5600 (16 Speeds)


Net Weight: 2,500 lbs.


H x D x W: 86" X 68" X 67"





Standard Features:


- High quality Taiwan-made mill head


- High precision China-made mill body


- Super strong column and base


- Low maintenance machines


- High precision leadscrews


- Satin chrome finished dials


- Built-in coolant column base


- Double knee and table locks


- Ram equipped w/ double locks


- Large diameter quill is chromed


- One-piece quill pinion and shaft


- Spindle head is internally cooled


- Hardened & ground ways


- Heavy-duty 3hp motor 3 phase


- High precision class 7 spindle bearings


- Three-stage power downfeed w/ auto stop


- One year warranty and 2nd year extended





Standard Equipment:


- Tool box 1 set


- Front Chip Guard 1 pc


- Rear Chip Guard 1 pc


- Draw Bar 1 pc


- One Shot Lube





Optional Equipment: (Call for pricing)


- Coolant System


- Power Feed for X,Y,Z


- Halogen worklight


- Electric control box


- Cutter holder


- Vise


- Clamping kit set


- Digital readout


- Base coolant drop pan


- Power air draw bar unit


- NMTB #30 spindle
