1966 BLANCHARD MODEL 22D ROTARY SURFACE GRINDER, 42” CHUCK - $RFQ

Item Number: #00097565

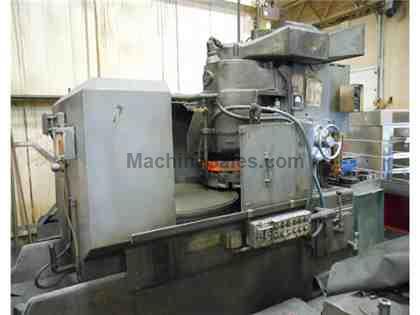

1966 BLANCHARD MODEL 22D ROTARY SURFACE GRINDER, 42” CHUCK





1966 BLANCHARD MODEL 22D ROTARY SURFACE GRINDER, 42” CHUCK

Stock Code:  CK-20427
Price: $RFQ
Subcategory:

Surface Rotary Grinders Vert. Spdl

Chuck42"
Year of Manufacture:  1966
Manufacturer:  Blanchard
Model:  22D
Condition: Used

SPECIFICATIONS

TABLE SIZE: 42"
RANGE: 48" DIA X 12" H OVER 42" CHUCK
POWER: 50 HP
WORK LOAD ON CHUCK: 3,000 LBS

WORK TABLE
BLANCHARD ONE PIECE STEEL MAGNETIC CHUCK 42" DIAMETER WITH 5/8" POLE SPACING. CHUCK HAS 2" CENTER HOLE. CHUCK USES DIRECT CURRENT ONLY SUPPLIED BY NEUTROFIER. 230 VOLTS DC IS STANDARD.

SPEEDS
WHEEL: 720 RPM
CHUCK: 6, 9, 12, 18, 25, 33 RPM
CHUCK MOTOR: 1,200 RPM
COOLANT PUMP: 1,800 RPM
TABLE TRAVERSE MOTOR: 900 RPM
HEAD TRAVERSE MOTOR: 900 RPM

FEEDS
VERTICAL DOWNFEED BY HAND OR POWER. POWER FEED VARIABLE FROM.004" TO .080" PER MINUTE WITH ACCURATE AUTOMATIC STOP, OR ON METRIC MACHINES .1MM TO 2.03MM PER MINUTE. MAXIMUM DOWNFEED BEFORE STOP OPERATES IS .098" STANDARD (2.489MM). WHEELHEAD HAS RAPID RAISE AND LOWER INTERLOCKED WITH FEED.

GENERAL
LENGTH: 11'8"
WIDTH – COOLANT TANK EXCLUDED: 8'4"
MAXIMUM HEIGHT: 9'1"
MINIMUM HEIGHT: 8'8"
HEIGHT OF CHUCK FROM FLOOR: 39"
WEIGHT: 14,250 LBS

EQUIPPED WITH

42" BLANCHARD ONE PIECE STEEL MAGNETIC CHUCK CD 22" SEGMENT CHUCK
JOGGING PUSH BUTTON FOR TABLE ROTATION
WATER GUARDS
SEGMENTED WHEEL
DRY BASE
WHEEL DRESSER BUILT INTO HEAD
OUTSIDE COOLANT SLUDGE TANK
