8" x 18" BIRMINGHAM® Precision Manual Surface Grinders - $RFQ

Item Number: #00064049
8&quot; x 18&quot; BIRMINGHAM&#174; Precision Manual Surface Grinders

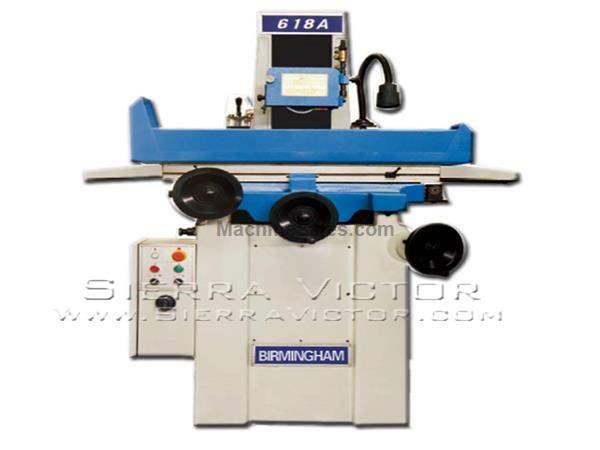

8" x 18" BIRMINGHAM® Precision Manual Surface Grinders

Stock Code:  WSG-818
Price: $RFQ
Subcategory:

Surface Recip. Table Grinders Vert. Spdl

Manufacturer:  Birmingham
Model:  WSG-818
Condition: New

CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
2 HP wheel spindle motor
Fine graduation on travels
High precision cartridge wheel spindle
Fine grain high tensile casting construction
Table slide way adopted high precision steel guide way

STANDARD EQUIPMENT:
Coolant tank
Balancing stand
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser stand (not include diamond pen)

SPECIFICATIONS:
Max. width to be ground: 8.5"

Max. Length to be ground:
18.5" (WSG-818)
20.5" (WSG-818A)

Max. Height to be ground: 14"

Table size:
8.5" x 18" (WSG-818)
8" x 20.5" (WSG-818A)

Permanent magnetic chuck size (optional):
8" x 16" (WSG-818)
8" x 8" (WSG-818A)

Max. Longitudinal travel:
20" (WSG-818)
22.5" (WSG-818A)

Max. cross travel
9.5" (WSG-818)
10" (WSG-818A)

Max. distance from spindle center to table surface: 18"

Feed of vertical handwheel:
Per rev.:
0.04" (WSG-818)
0.08" (WSG-818A)
Per div.: 0.0002"

Grinding wheel:
Wheel sizes
8" x 0.5" x 1.3" (WSG-818)
8" x 0.8" x 1.3" (WSG-818A)

Spindle speed: 3,450 (60Hz), 2,850 (50Hz)
Power of spindle head: 1.5 Kw

Max. load capacity (include permanent magnetic chuck):
282 lbs. (128 kg) (WSG-818)
308.6 lbs. (140 kg) (WSG-818A)

Machine Weight:
1,763.7 lbs. (800 kg) (WSG-818)
2,469 lbs. (1,120 kg) (WSG-818A)

Machine Appearance Size (L x W x H):
52.5" x 45.5" x 66" (WSG-818)
57" x 55" x 70" (WSG-818A)

Package Size (L x W x H):
55" x 44" x 78" (WSG-818)
66" x 67" x 78" (WSG-818A)

OPTIONAL ITEMS:
Permanent magnetic chuck
Coolant tank with dust collector
Dust collector, parallel dresser
Parallel dresser
Universal dresser
Radius & angle dresser
Sine dresser
Digital readout

OPTIONAL MODELS:
WSG-818
WSG-818A

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
