1988 CHEVALIER FSG-818AD 3-AXIS HYDRAULIC SURFACE GRINDER, 8” x 18” - $RFQ

Item Number: #00082085

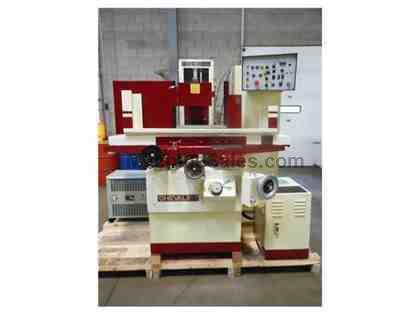

1988 CHEVALIER  FSG-818AD 3-AXIS HYDRAULIC SURFACE GRINDER, 8” x 18”





1988 CHEVALIER FSG-818AD 3-AXIS HYDRAULIC SURFACE GRINDER, 8” x 18”

Stock Code:  TK-20076
Price: $RFQ
Subcategory:

Surface Recip. Table Grinders Horiz. Spdl CNC

Table width8"
Table length18"
Year of Manufacture:  1988
Manufacturer:  Cheavlier
Model:  FSG-818AD
Condition: Used

SPECIFICATIONS

TABLE SIZE: 8" X 18"
MAXIMUM GRINDING LENGTH: 18"
MAXIMUM GRINDING WIDTH: 8"
MAXIMUM DISTANCE BETWEEN SPINDLE CENTER
TO TABLE SURFACE: 18"

LONGITUDINAL MOVEMENT OF TABLE
LONGITUDINAL TRAVEL, HYDRAULIC: 20”
MAXIMUM LONGITUDINAL TRAVEL, MANUAL: 22”
TABLE SPEED: 16 – 98 FPM

CROSS TRANSVERSE TRAVEL
RAPID TRAVEL: 10 FPM
AUTOMATIC TRANSVERSE INCREMENT: .02” - .5”
MAXIMUM AUTOMATIC TRANSVERSE TRAVEL: 8-5/8”
MAXIMUM MANUAL TRANSVERSE TRAVEL: 9-1/2”
HANDWHEEL PER REVOLUTION: .2”
HANDWHEEL PER GRADUATION: .001”

WHEELHEAD VERTICAL INFEED
AUTOMATIC INFEED: .00005” - .002”
HANDWHEEL PER REVOLUTION: .05”
HANDWHEEL PER GRADUATION: .0005”
RAPID TRAVEL: 6.5 IPM
MICRO-FEED: .00005”

MOTORS
GRINDING SPINDLE SPEED: 3,450 RPM
SPINDLE MOTOR: 2 HP
HYDRAULIC PUMP MOTOR: 2 HP
CROSSFEED MOTOR: 1/5 HP
RAPID DOWN-FEED MOTOR: ¼ HP

GRINDING WHEEL
DIAMETER: 8"
WIDTH: 1/2”
BORE: 1-1/4"

GENERAL
FLOOR SPACE: 72" LR X 60" FB X 72" H
MACHINE NET WEIGHT: 3,880 LBS
ELECTRICS: WILL ADVISE

EQUIPPED WITH

8” X 18”PERMANENT MAGNETIC CHUCK
PARALLEL MOUNTED WHEEL DRESSER

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
