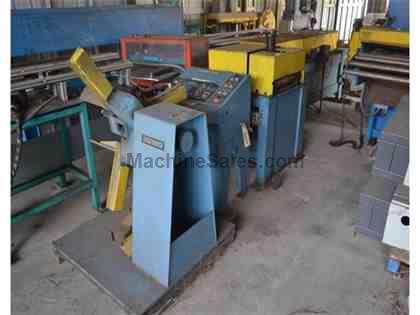

Used Lockformer Roll Form Line
S/N: Unk, Mfg: 1999, Stock No: 17973
Number of Stands: 14
Number of Passes: 10
Roll Space: 12"
Shaft Size: 1.5"
Vertical Centers: 4"
Vertical Adjustment: .5"
Horizontal Centers: 6"
Tooling Profile: Roll Up Garage Doore
Gear Driven
Unist Lube System
Motor: 7.5 HP
Electrical: 480 Volt / 3 Phase
Dimensions: 111" L-R x 59" F-B x 42" H

Control:
AMS Length Control System
Model: MP 300 Series
Dimensions: 28" L-R x 27" F-B x 40" H

Uncoiler:
Capacity: 3,000 Lbs.
Max. Coil Width: 12
Max. O.D.: 60"
I.D. Range: 12 - 21"
Manual Expansion
Dimensions: 40" L-R x 40" F-B x 60" H

Feeder/Cut-Off Unit
Motorized Pull Through Feeder
Flying Cut-Off: Hydraulic Actuated
Dimensions: 36" L-R x 41" F-B x 50" H

This machine is listed for sale by Pearl Equipment Co. located in Nashville, Tennessee
