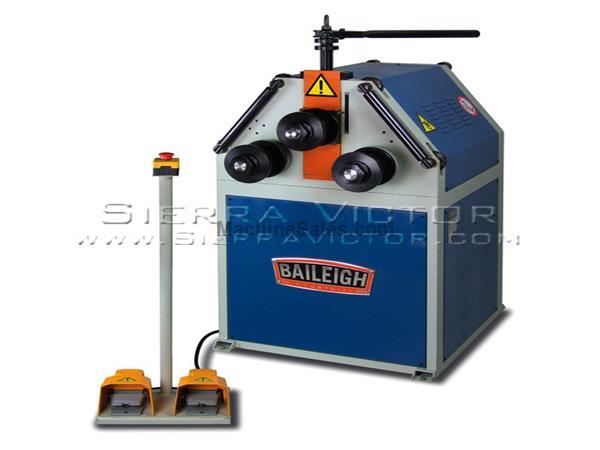

2" x 2" x .1875" BAILEIGH® Ring Roll Bender - $RFQ

Item Number: #00064642
2&quot; x 2&quot; x .1875&quot; BAILEIGH&#174; Ring Roll Bender





2" x 2" x .1875" BAILEIGH® Ring Roll Bender

Stock Code:  R-M55
Price: $RFQ
Subcategory:

Ring Rollers

Manufacturer:  Baileigh
Model:  R-M55
Condition: New

CALL FOR BEST PRICING!

FEATURES:
The R-M55 has been the flagship in the Baileigh Industrial roll bender line since its introduction. It has a 2" Schedule 40 pipe capacity, which is impressive for a manual top shaft two driven roll machine. To achieve this type of capacity, the R-M55 uses a variable speed inverter that is overload protected, this allows the operator to fine tune the rolling speed for each material.
The R-M55 is versatile and can be used in any fabrication shop or even out in the field on job sites, it only requires 220 volts of single phase power to operate. Another option is that it can be operated in both the vertical mode for small rolling projects, as well as in the horizontal mode for large rolling projects as there are feet on the bottom and back of the machine.
The R-M55 roll bender comes standard with foot pedal controls, segment rolls, and lateral roll guides to keep the material from twisting during the bend. The top roll position is manually controlled with the use of a large ratchet for more leverage and the position is indicated on a scale for repeatable bends every time. Optional rolls can be purchased for different profiles like tubing, pipe, angle iron and much more.
MADE IN PORTUGAL

SPECIFICATIONS:
Pipe: 56" Diameter w/2” (sch.40)
Round Tube: 60" Diameter w/ 2.75” (.083”)
Square Tube: 48" Diameter w/ 2 ” (.083”)
Angle Iron: 28" Diameter w/ 2” (.1875”)
Solid Square: 20" Diameter w/ 1.375”
Solid Round: 20" Diameter w/ 1.375"
Flat Bar Easy Way: 20" Diameter w/ 4" (.5")
Flat Bar Hard Way: 20" Diameter w/ 2.25" (.375")
Roll Adjustment: Manual
Pinch: Single
Shaft Diameter: 1.968"
Roll Diameter Upper: 5.827"
Roll Diameter Lower: 5.827"
Shaft Center Distance (lower rolls): 13.12"
Driven Rolls: 2
Speeds: 13.6-27.2 rpm (variable)
Motor: 1.5 HP
Power Requirement: 220V / 1 phase
Shipping Dimensions (L/W/H): 60” / 44” / 68”
Shipping Weight: 925 lbs

*All Specs based of 60,000 PSI (42 kg/mm2) Tensile Strength - Mild Steel

**Specs are to be used as a base line for purchase purposes only

OPTIONAL ITEMS:
Pipe / Tube Bending Rolls
Angle Bending Rolls
DON'T MAKE THE COSTLY MISTAKE OF ORDERING THE WRONG BENDING ROLLS FOR YOUR JOB OR PROJECT! CALL OR EMAIL US FOR A CUSTOM QUOTE ON PIPE OR ANGLE BENDING ROLLS THAT WILL BEST FIT YOUR NEEDS

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
