30 gallon Pfaudler Glass-lined Reactor - $15,500

Item Number: #00051318
30 gallon Pfaudler Glass-lined Reactor





30 gallon Pfaudler Glass-lined Reactor

Stock Code:  7076
Price: $15,500
Subcategory:

Reactors

Manufacturer:  Pfaudler
Model:  30 GAL
Condition: Used

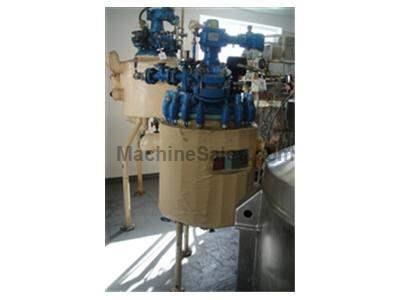

One used Pfaudler Clamp Top Glass Lined Reactor, 20 Gallon, 9115 Blue Glass, Vertical. Approximately 20" diameter x 14-1/2" straight side, dished clamp top, dish bottom. Internal rated 150/Full Vacuum psi at -20 to 450 degrees F., carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) Fin baffle, 3 blade retreat curve agitator driven by a Pfaudler variable speed drive, size 2.5 TWV, model SV-48270C-AKC, serial# 24981X, ratio 5 to 1, set up for hydraulic drive, connection for drive broken off, and missing, no power pack. Openings top (2) 1-1/2", (4) 2", 4" hand hole with sight glass cover. 2" Center bottom outlet. Provision for 3 legs. National Board# 51396, serial# J062355, built 2005.

This machine is listed for sale by Star Industries located in Los Angeles, California
