Brakes & Folding Machines
330 Ton x 13' U.S. INDUSTRIAL® CNC Hydraulic Press Brake - $RFQ
Item Number: #

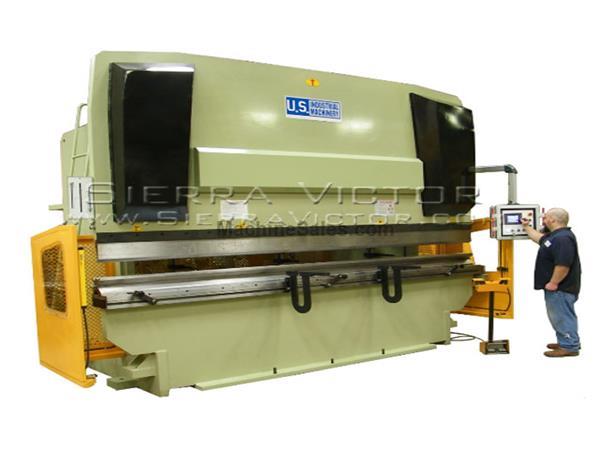

330 Ton x 13' U.S. INDUSTRIAL® CNC Hydraulic Press Brake
CALL FOR AVAILABILITY AND BEST PRICING!
Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar for Parallelism
Forged Heavy Duty Cylinder and Cylinder Body
Three Speed Ram
Rapid Approach, Bending Cycle and Rapid Retreat
Bottom Time Delay
All Steel Construction
Inching, Single Cycle and Continuous Operation
Ram takes special, heavy duty tang
Solid Ram Tool Clamps, 5 sections on Ram
Bed has slot
Bed also holds tooling with capture clamps
Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel *SPECIAL NOTE* The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose.
THERE IS NO WARRANTY ON THESE ITEMS.
*For non-CNC or other configurations and options, please call to check delivery.
*CNC 2-Axis Color Graphic Control: Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code And Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup
*Sick model 4000 light curtain system
*Third Axis (Back Gauge Height)
*CNC Controlled Hydraulic Auto Crown
NOTE: These items are STANDARD and included in price
Working pressure: 330 tons
Length of working table: 157.4"
Distance between housings: 120.8"
Throat depth: 15.7"
Stroke adjustment of ram: 3.93"
Ram travel: 9.84"
Open height: 24.8"
Bed Height: 40"
Backgauge Travel: 24"
Motor: 30 HP
Dimensions: 180" x 87" x 130"
Weight approx.: 49,604 lbs
Pilz PSENvip LED Safety Guarding
High Speed Servo Back Gauge
Training in our Memphis, TN Facility
Training at customer site, less than 300 miles from Memphis
Training at customer site, more than 300 miles from Memphis
Training outside continental USA
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
