14" Swing 40" Centers GMC GML-1440BGF, 220V, 1 Ph, 3 HP ENGINE LATHE, D1-4 w/1-1/2" bore; hi spd precision engine lathe - $4,950

Item Number: #00019074
14&quot; Swing 40&quot; Centers GMC GML-1440BGF, 220V, 1 Ph, 3 HP ENGINE LATHE, D1-4 w/1-1/2&quot; bore; hi spd precision engine lathe





14" Swing 40" Centers GMC GML-1440BGF, 220V, 1 Ph, 3 HP ENGINE LATHE, D1-4 w/1-1/2" bore; hi spd precision engine lathe

Stock Code:  146516
Price: $4,950
Subcategory:

Press Brake - New Standard Tooling / Dies

Manufacturer:  Gmc
Model:  GML-1440BGF, 220V, 1 PH,
Condition: Used

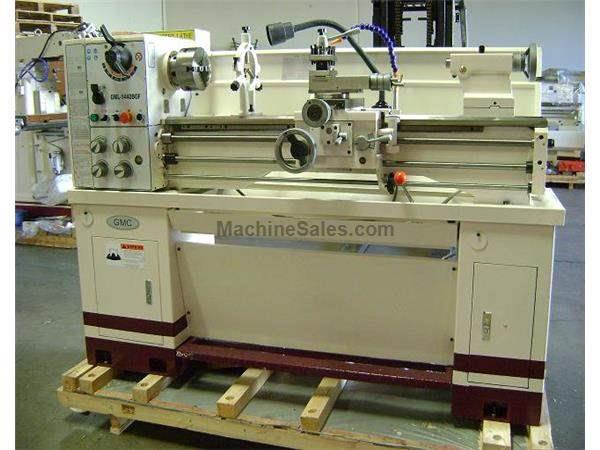

NEW "GMC" HIGH SPEED PRECISION ENGINE LATHE


MODEL: GML-1440BGF





FEATURES:


ISO 9001 certified


Full geared-head precision engine lathe with foot brake


Quick-change gearbox with fast and easy threading set up


Heavy duty main motor 3HP, 220V, 1 phase (3 phase optional)


Spindle bore 1 1/2"


Heavy duty spindle D1-4


Heavy duty guideway width 7 1/2"


8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm


56 kinds of inch threads and 44 kinds of metric threads


Spindle is balanced, hardened, and precision ground


All gears and shafts are hardened and precision ground


Guideways induction hardened and precision ground


Automatic lubrication system in headstock and feed box


One year warranty for parts





SPECIFICATIONS:


Max. swing over bed .......................... 14"


Max. length of workpiece ..................... 40"


Max. length of cutting ....................... 34"


Max. swing over cross slide .................. 8-1/4"


Max. swing in gap ............................ 19-1/4"


Width of bed ................................. 7-1/2"


Effective length in gap to spindle ........... 6-1/2"


Effective length in gap to chuck jaws ........ 3-5/8"


Spindle bore ................................. 1-1/2", D1-4


Taper of spindle center ...................... M.T.#5


Spindle speeds ............................... 70-2,000 rpm/8 steps


Longitudinal feeds ........................... 0.00168-0.11750 IPR, 24 kinds


Cross feeds .................................. 0.00046-0.03231 IPR, 24 kinds


Inch threads ................................. 4-112 TPI, 56 kinds


Metric threads ............................... 0.1-7.0 mm, 44 kinds


Diametral pitch threads ...................... 16-112 DP, 32 kinds


Module threads ............................... 0.1-1.75 mm, 34 kinds


Max. travel of top slide ..................... 4-1/4"


Max. travel of cross slide ................... 7-1/4"


Spindle speeds, 8 steps ...................... 70/115/190/300/460/755/1255/2000 rpm


Diameter of tailstock quill .................. 1-1/2"


Max. travel of tailstock quill ............... 4"


Taper of tailstock quill center .............. M.T.#3


Main motor ................................... 3 HP, 220V, 1 phase (3 phase optional)


Coolant pump ................................. 1/16 HP, 220V, 1 phase


Net weight, approx. .......................... 1,730 lbs.


Overall dimensions ........................... 70"L x 35"W x 59"H





STANDARD EQUIPMENT:


6" 3-jaw chuck with set reversible jaws


8" 4-jaw chuck with set reversible jaws


10" face plate


3-3/4" large steady rest


2" follow rest


Removable gap


Foot brake


Coolant system


Halogen work light


4-way tool post


Full length splash guard


(2) dead centers and (1) reducing sleeve


Thread chasing dial


Tool box





OPTIONAL EQUIPMENT (CALL FOR PRICING):


10" drive plate


Micro carriage stop


NEWALL DRO, 2 axis


SINO DRO, 2 axis


5-C hand lever type collet closer, free install


33 pc 5C collet set, from 1/16" to 1-1/16" by 32ndth


Taper turning attachment, free install


6 pc ALORIS type quick change tool post


Live center MT3


1/2" drill chuck


1/2" drill chuck arbor


Lathe package #1: 5 pc indexable carbide turning set, 1/2" drill chuck,


 chuck arbor, and 29 pc titanium drill bit set





*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.


FOR MORE INFORMATION: Call Kori at 973-497-7567

This machine is listed for sale by Machinery Values Inc. located in Harrison, New Jersey
