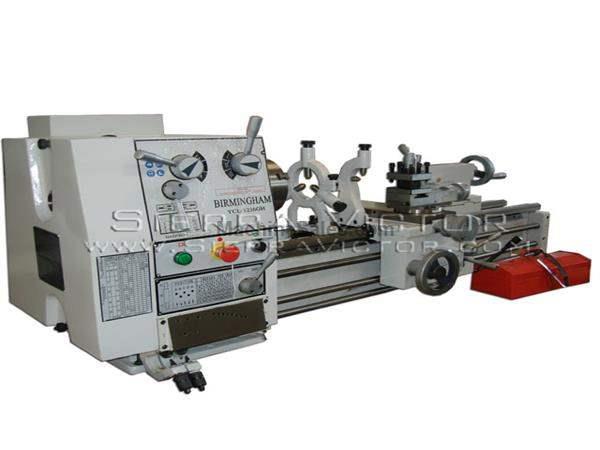

12" x 36" BIRMINGHAM® Precision Geared Head Bench Lathe - $RFQ

Item Number: #00080233
12&quot; x 36&quot; BIRMINGHAM&#174; Precision Geared Head Bench Lathe





12" x 36" BIRMINGHAM® Precision Geared Head Bench Lathe

Stock Code:  YCL-1236GH
Price: $RFQ
Subcategory:

Precision Lathes

Manufacturer:  Birmingham
Model:  YCL-1236GH
Condition: New

CALL FOR BEST PRICING!

FEATURES:
Floor Stands are included
2 HP, 220V, 1 Phase Main Motor
D1-4 Spindle With 1-1/2 inch Thru Bore
9 Spindle Speeds From 70-1400 RPM
40 Kinds of Inch Threads From 112-4 TPI
Automatic Longitudinal and Cross Feeding
Main Spindle Hardened and Precision Ground
Bed Made of Fine Grain High Tensile Cast Iron
Bedways Induction Hardened and Precision Ground
Splined Shafts In Headstock Hardened and Precision Ground
Jog Button For Easy Gear Engagement and Inching Spindle
Emergency Stop Button Located on The Front Of Headstock

STANDARD EQUIPMENT:
Follow rest
10 inch face plate
6 inch 3-jaw chuck
8 inch 4-jaw chuck
3-3/4 inch steady rest
Operation and parts manuals
Removable gap
4-way tool post
Thread chasing dial
Center and sleeve
Tool kit with tools
Full length splash guard

SPECIFICATIONS:
CAPACITIES
Max. Swing Over Bed: 12"
Distance between Centers: 36"
Max. Swing Over Carriage: 7"
Max. Swing in Gap: 17"
Effective length in gap: 5"
Width of Bed: 7-1/4"

HEADSTOCK
Spindle Nose: D1-4
Diameter of Spindle thru Bore: 1-1/2"
Taper of Spindle Center: M.T. #5
(reducing sleeve M.T.#5 / M.T.#3)
Spindle Speeds, 9 Steps: 70-1400 RPM, 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM

FEEDS & THREADS
Longitudinal feeds: .0011" - .0311" / REV., 40 Kinds
Cross feeds: .0004" - .0105" / REV., 40 Kinds
Metric Threads: 0.2 - 4.5mm, 30 Kinds
Inch Threads: 112 - 4 TPI, 40 Kinds

CARRIAGE
Max. Travel of Cross Slide: 6-7/8"
Max. Travel of Top Slide: 3-3/4"
4 Way Tool Post Capacity: 3/4" x 3/4"

TAILSTOCK
Diameter of Tailstock Quill: 1-1/4"
Taper of Tailstock Quill Center: M.T. #3
Max. Travel of Tailstock Quill: 4"

WEIGHT & MOTOR
Power of Main Motor: 2 HP, 220V, 1 Phase
Overall Dimensions with Stand: 61" W x 28" L x 50" H
Overall Dimensions without Stand: 61" W x 28" L x 24" H
Net weight: 1,250 lbs. (without stands 1,000 lbs.)

OPTIONAL ITEMS:
Quick Tool Changer
Halogen Work Light
Taper Turning Attachment
5-C Lever Type Collet Closer

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

This machine is listed for sale by Sierra Victor Industries located in Port Orange, Florida
