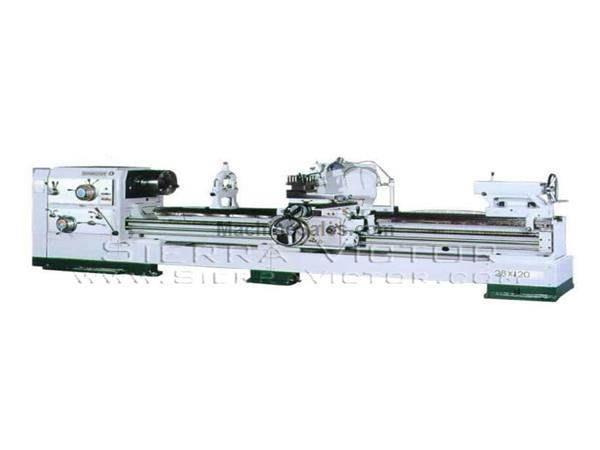

32" x 60" BIRMINGHAM® Heavy Duty Precision Gap Bed Lathe - $RFQ

Item Number: #00064615
32&quot; x 60&quot; BIRMINGHAM&#174; Heavy Duty Precision Gap Bed Lathe





32" x 60" BIRMINGHAM® Heavy Duty Precision Gap Bed Lathe

Stock Code:  DL-3260
Price: $RFQ
Subcategory:

Precision Lathes

Manufacturer:  Birmingham
Model:  DL-3260
Condition: New

CALL FOR BEST PRICING!

FEATURES:
All threading without changing gears
Main spindle hardened & precision ground.
Bed made of fine grain high tensile cast iron.
4-way rapid traverse to carriage & cross slide.
Bed ways induction hardened & precision ground.
All gears and shafts hardened & precision ground.
Spindle supported at 3-points by precision bearings.
Automatic lubrication system in headstock & feed box.
Hydr-control multi-disc clutch for spindle turning & brake.

STANDARD EQUIPMENT:
Chip pan
Tailstock
Change gears
16" Steady rest w/ rollers
4" Follow rest
Removable gap
Coolant system
4-way toolpost
31-1/2" face plate
15" 3-jaw chuck
Safety protector
Centers & sleeve
Work light system
Instruction manual
Tool kit with tools
4-way rapid traverse
"T" slot style compound
25" 4-jaw chuck
Thread chasing dial
Splash guard (partial size)
Leveling pads
12" drive plate

SPECIFICATIONS:
CAPACITIES
Max. swing over bed: 32"
Max. swing over cross slide: 20-1/2"
Max. swing in gap: 39"
Width of bed: 21-21/32"
Effective length in gap to spindle: 16"
Effective length in gap to chuck: 9-1/2"
Max. distance between centers: 60"

HEADSTOCK SPINDLE
Spindle bore: 5-1/8"
Spindle nose: D1-11 Camlock
Spindle speed range: 7.5 - 1,000 RPM
7.5 / 10 / 13 / 18 / 23 / 31 / 43 / 56 / 75 / 100 / 132 / 178 / 240 / 310 / 420 / 575 / 740 / 1000
Spindle speed numbers: 18 steps
Taper of spindle center: M.T. No. 5

FEEDS & THREADS
Longitudinal feeds: 0.002-0.96 IPR, 64 kinds
Cross feeds: 0.001-0.48 IPR, 64 kinds
Inch threads: 32-1/16 TPI, 73 kinds
Metric threads: 1-256mm, 57 kinds
Module threads: 0.5-128mm, 57 kinds
Diametral pitch threads: 32-1/8 DP, 57 kinds
Leadscrew diameter / Pitch: 2-1/4", 2 TPI

CARRIAGE
Top slide travel, max.: 7-55/64"
Cross slide travel, max.: 19-13/32"
Longitudinal rapid travel: 149"/min
Cross slide rapid travel: 74-1/2"/min
4-way tool post capacity: 1-1/4" x 1-1/4"

TAILSTOCK
Quill taper: M.T. No. 5
Quill travel: 9-1/2"
Quill diameter: 3-15/16"

MOTORS
Main drive motor: 20 HP, 220V/440V, prewired 220V
Coolant pump motor: 1/8 HP, 220V/440V, prewired 220V
Rapid traverse motor: 1-1/2 HP, 220V/440V, prewired 220V

MISCELLANEOUS
Overall dimensions (L x W x H): 160" x 58" x 75"
Net weight (Approx.): 9,500 lbs.

OPTIONAL ITEMS:
Digital readout
Taper turning attachment
10" steady rest w/ rollers for DL-32
Quick change tool post & holders
24" steady rest w/rollers

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
