Machine Tools > Rolls > Pipe Bending Rolls    < Back

80" WIDTH 0" THICKNESS GMC HBR-0625 *Taiwan Made* NEW BENDING ROLL, 6' x 1/4" Hydraulic Plate Bending Roll; 5.5 hp - $RFQ

Item Number: #00019125
80&quot; WIDTH 0&quot; THICKNESS GMC HBR-0625 *Taiwan Made* NEW BENDING ROLL, 6' x 1/4&quot; Hydraulic Plate Bending Roll; 5.5 hp

80" WIDTH 0" THICKNESS GMC HBR-0625 *Taiwan Made* NEW BENDING ROLL, 6' x 1/4" Hydraulic Plate Bending Roll; 5.5 hp
Stock Code:  145255
Price: $RFQ
Subcategory:

Pipe Bending Rolls

Manufacturer:  Gmc
Model:  HBR-0625 *TAIWAN MADE*
Condition: Used

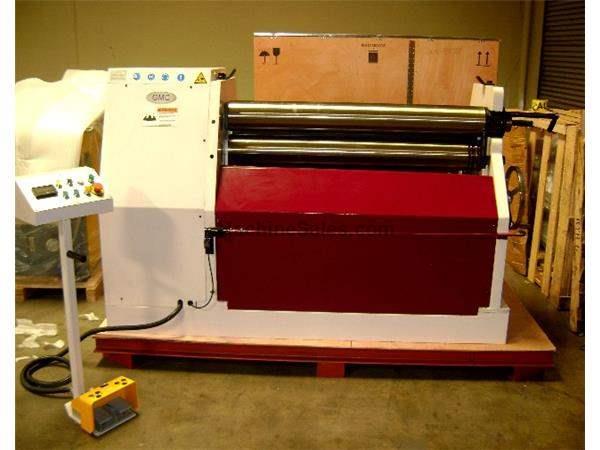

NEW GMC MODEL: HBR-0625


INITIAL PINCH HYDRAULIC PLATE BENDING ROLL MACHINE








Standard Features:



  • ISO 9001 certified

  • Taiwan Machines

  • All three rollers are driven

  • All three rollers are hardened, up to 50-52 HRC

  • Easy swing –out top roller

  • Standard cone attachment installed

  • 1 each LED indicator for bending roll position

  • Safety line all around the machine for emergency stop

  • Heavy Duty all steel welded machine construction

  • German Hydraulic logic system centrally located and quiet

  • Bending roll is hydraulic powered up/down & tilting adjustment

  • Planetary reduction gear and pump

  • All three rolls are made of high grade alloy steel

  • All rolls run forward and reverse

  • Safety type foot pedal control

  • Overload protection and disconnect switch

  • Power source 208V/220V, (Option 460 V , 3 phase)

  • One year industrial warranty for parts






Standard Equipment:



  • LED indicator for bending roll position

  • Safety line all around the machine for emergency stop

  • Removable safety foot pedal and tool box

  • Cone attachment ( to make cone parts)

  • (3) grooves 3/8”, ½”, 5/8” on roll for bending wire






Optional Equipment:


Safety fence for enclosure of the back side of the machine……………  $1,150.00





SPECIFICATIONS:


Roll Capacity


Mild Steel: 6' x 1/4"


Stainless Steel: 6' x 3/16"


Minimum roll diameter: 8-1/2"


Rolls length: 6'8"


Rolls diameter: 7-1/2"


Pre-bend: 0.18"


Rolls Speed: 5 rpm


Rolls opening: 3/4"


Oil tank capacity: 30 Gal


Main Motor: 5-1/2 HP


Machine weight: 7,650 lbs


Dimensions: 118" x 38" x 58"





FOR MORE INFORMATION: Call Terry at 973-497-7612
