20' BAILEIGH® Plasma Tube Profiling Machine - $RFQ

Item Number: #00094595
20&#39; BAILEIGH&#174; Plasma Tube Profiling Machine

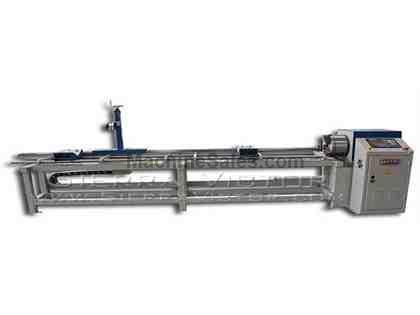

20' BAILEIGH® Plasma Tube Profiling Machine

Stock Code:  PTP-1120
Price: $RFQ
Subcategory:

Miscellaneous - Cut-off / Lasers / Flame / Plasma / Waterjet

Manufacturer:  Baileigh
Model:  PTP-1120
Condition: New

CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
The PTP-1120 plasma tube profiling machine is the economical choice in notching and profiling tube and pipe with plasma. This CNC pipe-cutting solution features a compact footprint of only 2-feet wide by 22-feet long and can rapidly finish 20-foot material. the PTP-1120 also improves pipe fabrication productivity and quality by utilizing easy set-up, programming and cutting.
The controller provides effective cutting on X-Y axis and the included software allows the operator to take the design-software-generated G code and take it directly to the controller. The movement of the axis are controlled by stepper motors, providing smooth carriage motion. A pneumatic chuck opens and closes the vice so that material can be easily loaded, positioned for cutting and unloaded.
The PTP-1120 uses a variable-angle, manual height control for plasma torches. It is capable of cutting and profiling pipe with an outside diameter range of 2" 11.5". The PTP-1120 is perfect for the shop that needs to quickly and efficiently make a wide range of cuts. These cuts include straight, miter, saddle, center offset, multiple intersection and gusset slots. The unit also cuts round, rectangular and overlapping pipe holes.
Plasma System Sold Separately

SPECIFICATIONS:
Maximum Load Capacity: 100 lbs. per foot
Table Size: 19.685' (6 Meters)
Max. Piercing Capacity: Depends on Plasma System
Notching Capacity (OD): 2" - 11.5" (50-300mm)
Power: Y Axis - .5hp , X Axis - 1hp
Special Notes: Plasma System Sold Separately
Shipping Weight: 3,500 lbs.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
