10" x 50" SHARP® CNC Knee Mill with 3-Axis FAGOR 8500i - $RFQ

Item Number: #00084590
10&quot; x 50&quot; SHARP&#174; CNC Knee Mill with 3-Axis FAGOR 8500i

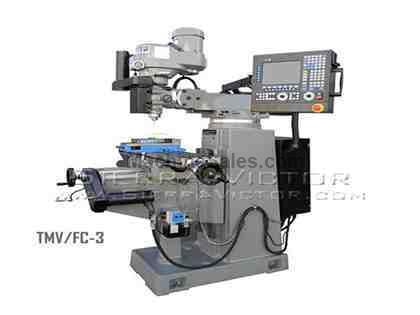

10" x 50" SHARP® CNC Knee Mill with 3-Axis FAGOR 8500i

Stock Code:  TMV/FC-3
Price: $RFQ
Subcategory:

Knee Millers

Table width10"
Table length50"
Manufacturer:  Sharp
Model:  TMV/FC-3
Condition: New

CALL FOR BEST PRICE!

FEATURES:
"Bridgeport-type" mill
CNC control by Acu-Rite and FAGOR for 2 axes and 3 axes
The 3rd axis is on the quill. Conversational programming allow easy operation of the machine without using G code.
Fagor CNC System w/Software and Hardware Features
10.4” color monitor; 512 MB compact flash, 1 MB RAM, conversational and G-code programming with teach-in mode. On-bard profile editor for easy blue print programming, including complex profiles( mini CAD/CAM), 3 D contouring capabilities
Communication includes RS-232, DNC, USB and Ethernet card ( option)
Handheld Manual Pulse Generator ( option )
Digital Servo Drive System (3 aves)
Precision Ground Ballscrews
3-AxesDRO (table, saddle, quill)
Self-Lubricating Motor Shaft
Precision Ground Gibs
ABEC-7 Super Precision Spindle Bearing
Roller Bearing Support Lower Portion of Motor Shaft
Hard Chromed Variable Drive Pulley
One-Piece Meehanite Casting
Cross Way Cover
Dual Cooling Fan

STANDARD EQUIPMENT:
Harden and ground box-ways
Manual Drawbar
Front and rear way covers
Automatic Lube System
Tool Kit includes:
Machine manual, Half nut wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screwdriver, Flat head screw driver, Oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint.

SPECIFICATIONS:
TABLE
Working surface: 10” x 50"
T-slot number, size: 3, 5/8"

CAPACITY
Table travel; X-Axis: 28”
Saddle travel; Y-Axis: 15.5"
Ram travel: 18.5"
Quill travel (Z-axis): 5"
Knee travel: 15.3"
Spindle to column: 9.8” - 28.3"
Spindle to table top: "1.6 - 16.9"

SPINDLE
Motor: 3 HP
Wiring voltage: 220/440v, 3 phase, 60 Hz
Taper: R-8
Speed (vari-speed): 60-4,500 RPM
Quill feed (IPR): 0.0015”, 0.003”, 0.005"
Accuracy: 0.0002" TIR
Head tilt; right-to-left (each way): 90°
Head tilt up-and-down (each way): 45°

DIMENSIONS & WEIGHT
Floor area (w x d x h): 70" x 75" x 88"
Approx. Net weight: 3,700 lbs.

TOTAL POWER CONSUMPTIONS
220V: 3KVA/15 amps
440V: 3KVA/7.5 amps

OPTIONAL ITEMS:
DVS Head wired 220V*
DVS Head price based on 220V wiring (for 440V – Please call)
*440V Transformer – 3HP
6” “Kurt” Vise with Swivel Base
Drill Arbor, order with 2531-6088
Drill Chuck – Jacobs with Arbor (0-1/2”) R8
Coolant System with Chip Pan At Base
“Maxi-Torque Rite” Power Draw Bar
“ Align” Power Draw Bar
Factory Installation Charge – PDB, Each
R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”
Clamping Kit (52 pcs/steel rack)
Halogen Work light
Fagor CNC Control Optional Items:
SSpindle Interface: Start / forward / reverse control. RPM control.
Coolant on/off interface
110 volt transformer
Remote hand wheel (RPG/100P
Ethernet network port.
Upgrades: 2GB compact flash memory. 1M RAM memory. 8055i-PLUS faster CPU
Digital Probe couture tracing system.
Forth axes DRO feedback (for index table or knee).

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

This machine is listed for sale by Sierra Victor Industries located in Port Orange, Florida
