9" x 42" - 50" SHARP® CNC Vertical Knee Mills - $RFQ

Item Number: #00083362
9&quot; x 42&quot; - 50&quot; SHARP&#174; CNC Vertical Knee Mills

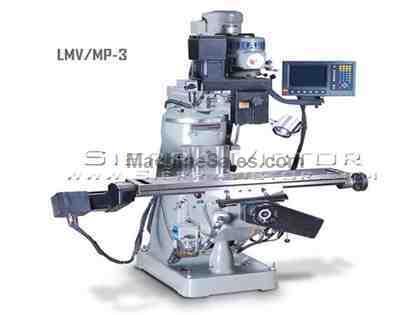

9" x 42" - 50" SHARP® CNC Vertical Knee Mills

Stock Code:  LMV / MP-3
Price: $RFQ
Subcategory:

Knee Millers

Manufacturer:  Sharp
Model:  LMV / MP-3
Condition: New

CALL FOR BEST PRICE!

9" x 42" - 50" SHARP® CNC Vertical Knee Mills with 3-Axis ACU-RITE MILLPWR

FEATURES: CALL FOR MORE INFORMATION

SPECIFICATIONS:
TABLE
Working surface
9” x 42" (LMV / MP-3)
9” x 50" (LMV-50 / MP-3)

T-slot number, size: 3, 5/8"

CAPACITY
Table travel
11" x 25" (LMV / MP-3)
11" x 32" (LMV-50 / MP-3)

Ram travel: 12"
Quill travel (Z-axis): 5"
Knee travel: 16"
Spindle to column (min-max): 6-3/4" - 18-1/2"
Spindle to nose to table: 2-1/8” - 18"

SPINDLE
Motor: 3 HP
Wiring voltage: 220/440v, 3 phase, 60 Hz
Taper: R-8
Speed (vari-speed): 60-4,500 RPM
Quill feed (IPR): 0.0015”, 0.003”, 0.006"
Head swivel: 360°
Head tilt; right-to-left (each way): 45°
Head tilt up-and-down (each way): 45°

DIMENSIONS & WEIGHT
Floor area (w x d)
87" x 64" x 84" (LMV / MP-3)
101" x 64" x 84" (LMV-50 / MP-3)

Net weight
3,200 lbs. (LMV / MP-3)
3,250 lbs. (LMV-50 / MP-3)

OPTIONAL ITEMS:
CALL FOR PRICE:
DVS Head wired 220V
440V Transformer - 3HP
6” “Kurt” Vise with Swivel Base
R-8 collet set.
Clamping kit.
Right angle milling attachment.
Riser block. Power drawbar.
Coolant System with Chip Pan At Base
Power Draw Bar
Halogen Work light

OPTIONAL MODELS:
LMV/MP-3: 9" x 42"
LMV-50/MP-3: 9" x 50"

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
