10" x 54" BAILEIGH® Vertical Knee Mill - $RFQ

Item Number: #00065347
10&quot; x 54&quot; BAILEIGH&#174; Vertical Knee Mill

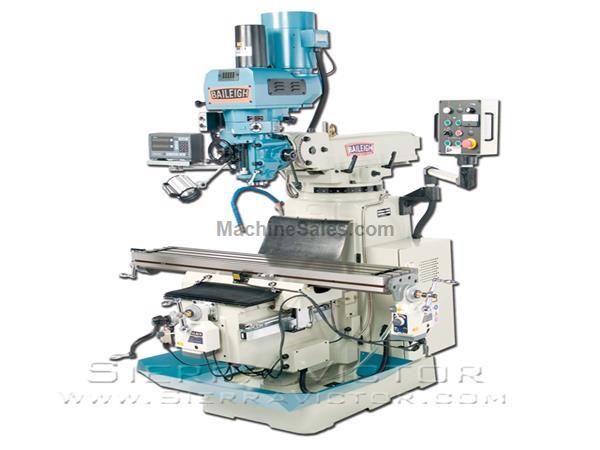

10" x 54" BAILEIGH® Vertical Knee Mill

Stock Code:  VM-1054-3
Price: $RFQ
Subcategory:

Knee Millers

Manufacturer:  Baileigh
Model:  VM-1054-3
Condition: New

CALL FOR BEST PRICING!

FEATURES:
Table size is very important when deciding which milling machine to buy. The VM-1054 from Baileigh Industrial has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help to eliminate corrosion.
The VM-1054 is a variable speed milling machine that is powered by Yaskawa® inverter. This inverter is powered by 220 volts of three phase power. Inverters are great for milling machines because of their ability to be adjusted to any speed desired between 0 and 3800 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which saves money. Baileigh Industrial selected an NST 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time. Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame work out of. The stronger you make he platform the better the cutting is.
All three axis are powered on the VM-1054 making it easy on the operator. Another nice feature of the VM-1054 milling machine is the two axis digital readout that comes standard. This Mitutoyo® digital readout is accurate to 1/10 of 1 thousandth of an inch. The X and Y axis have square slide ways with covers and ball screws for the best movement available. A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054
MADE IN TAIWAN

SPECIFICATIONS:
Table size (L/W): 54” / 10”
Table Load Capacity: 550 lbs
T-slot Size: 3 @ .625”
Travel - Manual X-axis: 35.43”
Travel - Manual Y-axis: 15.75”
Travel - Manual Z-axis: 16”
Travel - Auto X-axis: 32.25”
Travel - Auto Y-axis: 15.75”
Travel - Auto Z-axis: 16”
Spindle Taper: NST #40
Spindle Speed: 80 - 3,800 rpm
Spindle Feed Per Rev.: .0015” / .003” / .005”
Spindle Diameter: 3.93"
Spindle Head Swivel: 45 deg. (R&L / F&R)
Spindle Travel: 5"
Spindle Nose to Table (min/max): 1.57” / 17.55”
Spindle Center to Column (min/max): 7.87” / 26.77”
Cross Travel of Ram: 18.89”
Horizontal Rotation: 360 deg.
Motor Spindle: 3 hp
Motor Coolant Pump: 1/8 hp
Power Requirement: 220v / 3 phase
Shipping Dimensions: 60” / 60” / 87”
Shipping Weight: 3,000 lbs


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
