NEW- SCOTCHMAN 50514CM IRONWORKER - 50 TON - $RFQ

Item Number: #00068292

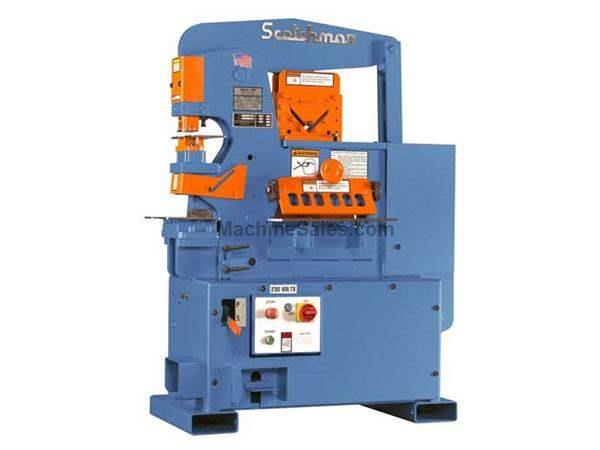

NEW- SCOTCHMAN 50514CM IRONWORKER - 50 TON





NEW- SCOTCHMAN 50514CM IRONWORKER - 50 TON

Stock Code:  NW-19336
Price: $RFQ
Subcategory:

Ironworkers

Angle L14"
Angle L24"
Manufacturer:  Scotchman
Model:  50514CM
Condition: New

SPECIFICATIONS (RATED ON 36 MILD STEEL)
PUNCHING CAPACITY: 50 TON
1-1/4″ IN 1/2″ 13/16″ IN 3/4″
THROAT DEPTH: 6″
FLAT BAR SHEAR: 14″ LENGTH
3/4″ X 4″
1/2″ X 8″
3/8″ X 10″
1/4″ X 14″
ANGLE SHEAR (90 DEG.): 4″ X 4″ X 3/8″
ANGLE SHEAR (45 DEG.): 2″ X 2″ X 3/8″
RECTANGLE NOTCHER: 2-1/2″ X 3″ X 5/16″
2-1/2” X 2-3/4” X 3/8”
STROKES PER MINUTE
LIGHT MATERIAL: 40 SPM (1/4” STROKE) (PUNCH STATION)
HEAVY MATERIAL: 17 SPM (3/4” STROKE) (PUNCH STATION)
HYDRAULICS: 2,100 PSI (145 BAR)

CAPACITIES WITH OPTIONAL ACCESSORIES (RATED ON 36 MILD STEEL)
SPECIAL TOOLING: 2-1/4” MAXIMUM DIAMETER
OPTIONAL SABER BLADE: ¾” X 4”
½” X 10”
3/8” X 12”
¼” X 14”
BRAKE, 8″: 30 TON
BRAKE, 12″: 25 TON
OPEN END BRAKE, MAXIMUM: ¼” X 3” (FLAT OR ANGLE IRON)
PIPE NOTCHER: 3/4″, 1″
SCHEDULE 40: 1-1/4″, 1-1/2″, 2″
90 DEG. V-NOTCHER: 6″ X 6″ X 1/8″
3” X 3” X ¼”
ROD SHEAR – ROUND ROD, MAXIMUM: ¼” TO 1” (5 CAVITY)
ROD SHEAR – SQUARE ROD, MAXIMUM: ¼” TO ¾” (1 CAVITY)
SQUARE TUBE SHEAR: 1/2″ TO 1″ (12 GAUGE)
PICKET TOOL: 1/2″, 3/4″, & 1″ (16 GAUGE)

GENERAL
DIMENSIONS: 47″ L X 29″ W X 59″ H
WEIGHT: 1,275 LBS.
MOTOR: 3 HP
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

STANDARD FEATURES
50 TON PUNCH STATION (1-1/4″ IN 1/2″)
KEYED PUNCH RAM FOR SAFETY
6” THROAT DEPTH
ANGLE SHEAR CAPACITY 4″ X 4″ X 3/8″ AT 90° & 2″ X 2″ X 3/8″ AT 45°
14″ FLAT BAR SHEAR WITH 4-WAY REVERSIBLE BLADE
RECTANGULAR NOTCHER 2-1/2” X 2-3/4” X 3/8”
TOOL TABLE WORK AREA
2″ DIE HOLDER
PUNCH NUT WITH WRENCH & STRIPPER
ONE ROUND PUNCH AND DIE: MAXIMUM DIAMETER 1”
ADJUSTABLE STROKE CONTROL
ELECTRICAL BOX SUPPLIED WITH EMERGENCY PALM BUTTON & LOCK-OUT TAG-OUT ACCOMMODATIONS
ALL GUARDS NECESSARY TO COMPLY WITH ANSI B 11-5 STANDARDS
FORKLIFT ACCOMMODATIONS
THREE YEAR WARRANTY
MADE IN THE U.S.A.

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
