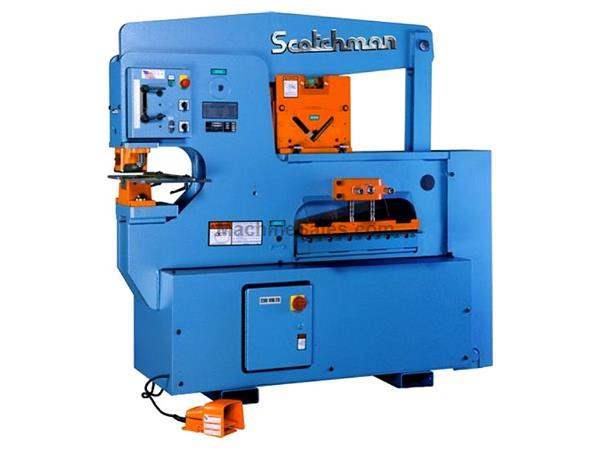

90 Ton 12" Throat Scotchman 9012-24M *Made in the USA* NEW IRONWORKER, single operator; 3 stations; 5 hp 3 ph 230/460v - $21,190

Item Number: #00018756
90 Ton 12&quot; Throat Scotchman 9012-24M *Made in the USA* NEW IRONWORKER, single operator; 3 stations; 5 hp 3 ph 230/460v





90 Ton 12" Throat Scotchman 9012-24M *Made in the USA* NEW IRONWORKER, single operator; 3 stations; 5 hp 3 ph 230/460v

Stock Code:  136588
Price: $21,190
Subcategory:

Ironworkers

Angle L190"
Angle L212"
Manufacturer:  Scotchman
Model:  9012-24M *MADE IN THE USA
Condition: New

NEW SCOTCHMAN 90 TON IRONWORKER


MODEL: 9012-24M





*MADE IN THE USA*





STANDARD FEATURES:


90-ton punch station (1-1/8" in 1")


Keyed punch ram for safety


12" throat depth


Punch gauging table with fence and scale


Die holder complete with 2" die insert


Punch nut with wrench and stripper


One round punch & die: max. diameter 1-1/4"


Punch jog control


Adjustable electric stroke control with scale


Electric remote foot pedal


Angle shear capacity @ 90 degrees: 6" x 6" x 1/2"


24" flat bar shear with 4-way reversible blade


Shear table with miter fence


Tool table work area


Two-stage hydraulic pump


Electrical box supplied with emergency palm button and lock-out tag-out accommodations


230/460 volt/3-ph electrics (must specify voltage)


All guards necessary to comply with ANSI B 11-5 standards


Forklift accommodations


Three-year warranty on parts





CAPACITIES AND SPECIFICATIONS:


RATED ON A36 MILD STEEL/65,000 PSI TENSILE





Punching capacity .................................. 90 ton (80 mt)


                  .................................. 1-1/8" in 1" (27 mm in 25 mm)


Special tooling .................................... 4" max. dia. (100 mm max. dia.)


Throat depth ....................................... 12" (300 mm)


Flat bar shear ..................................... 24" length (600 mm)


               ..................................... 1" x 8" (25 x 200 mm)


               ..................................... 3/4" x 12" (18 x 300 mm)


               ..................................... 1/2" x 16" (12 x 400 mm)


               ..................................... 1/4" x 24" (6 x 600 mm)


Opt. Sabre blade ................................... 1/2" x 22" (12 x 550 mm)


                 ................................... 3/8" x 24" (10 x 600 mm)


Angle shear


 90 degrees ........................................ 6" x 6" x 1/2" (150 x 150 x 12 mm)


 45 degrees ........................................ 3" x 3" x 3/8" (75 x 75 x 10 mm)


 (w/Bar shear) ..................................... 4" x 4" x 1/2" (100 x 100 x 12 mm)


Brake 12" .......................................... 50 ton (45 mt)


Brake 24" .......................................... 40 ton (36 mt)


Open end brake ..................................... Max. 1/4" x 5" (6 x 125 mm) flat or angle iron


Pipe notcher ....................................... 3/4", 1" (20 mm, 25 mm)


Schedule 40  ....................................... 1-1/4" (32 mm)


             ....................................... 1-1/2", 2" (38 mm, 50 mm)


Rectangle notcher .................................. 2" x 2-1/2" x 3/8" (50 x 65 x 10 mm)


90 degree V-notcher ................................ 6" x 6" x 5/16" (150 x 150 x 8 mm)


Channel shear ...................................... 2" to 6" adj. (50 mm to 150 mm adj.)


Strut shear ........................................ samples required


Rod shear


 Round rod (max.) .................................. 1/4" to 1-1/4", 9 cavity (6 mm to 32 mm)


 Square rod (max.) ................................. 1/4" to 1", 1 cavity (6 mm to 25 mm)


Square tube shear .................................. 1/2" to 2", 12 gauge (12 to 50 mm, 2.75 mm)


Picket tool ........................................ 1/2", 3/4", 1" (12 mm, 19 mm, 25 mm)


            ........................................ 16 gauge (1.6 mm)


Offset die holder .................................. Max. 40 ton (36 mt)


Strokes per minute


 In light material ................................. 56 spm (1/4" stroke) [punch station]


 In heavy material ................................. 19 spm (3/4" stroke) [punch station]


Hydraulics ......................................... 2,600 psi (183 bar)





Motor


 Standard .......................................... 5 hp 3 ph (3.73 kW) 230/240/208/380/575v


 Optional .......................................... 5 hp 1 ph (3.73 kW) 230v





Dimensions ......................................... 76" L x 26" W x 70" H


           ......................................... (193 cm x 66 cm x 177 cm)





Shipping weight .................................... 4,204 lbs. (1,906 kg)





OPTIONAL STANDARD TOOLING (CALL FOR PRICING):


12" & 24" brake


Open end brake


Pipe notcher


90 degree V-notcher


Rectangle notcher


6" x 6" die holder


Channel shear


Tube shear


Rod shear


Picket tool


Offset die holder


Unequal leg angle blades


Punch slug receptacle


Strut shear


Urethane stripper


Brake length gauge with scale (12" & 24" brakes)


Brake table with scale & squaring arm (12" & 24" brake)


Multi-loc punch gauging table (36" and 85" extensions available)


48" back gauge


Hydraulic hold-down


Laser light


Tool table extension with punch and die storage


24" x 5' conveyor with angle iron support


Punch table extension
