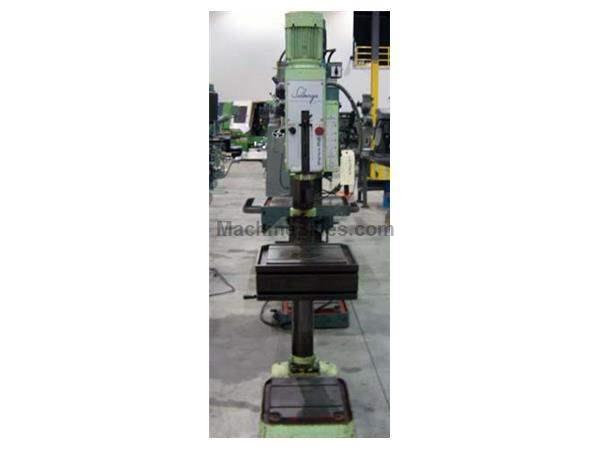

USED SOLBERGA SE1735 GH SINGLE SPINDLE DRILL - 24" - $RFQ

Item Number: #00068173
USED SOLBERGA SE1735 GH SINGLE SPINDLE DRILL - 24&quot;





USED SOLBERGA SE1735 GH SINGLE SPINDLE DRILL - 24"

Stock Code:  CK-17857
Price: $RFQ
Subcategory:

Heavy Duty - Sensitive Single Spindle Drills

Swing24"
Motor2.2HP
Manufacturer:  Solberga
Model:  SE1735
Condition: Used

SPECIFICATIONS
DRILLS TO CENTER OF CIRCLE: 24″
DRILLING CAPACITY IN CAST IRON: 1-1/2″
DRILLING CAPACITY IN MILD STEEL: 1″
SPINDLE TRAVEL: 6″
SPINDLE TAPER: NO. 3 MT
LOW SPINDLE SPEEDS: 60, 160, 260, 715 RPM
HIGH SPINDLE SPEEDS: 120, 320, 520, 1430 RPM
POWER FEED PER SPINDLE REVOLUTION (4): .004″, .008″, .012″, .016″
COLUMN DIAMETER: 4-1/8″
RECTANGULAR TABLE WITH MACHINES T-SLOTS,
OIL COOLANT CHANNEL & SIDE CLAMPING PLATE: 17″ X 18″
SIDE PLATE: 20″ X 7″

GENERAL
OVERALL FLOOR BASE, APPROX: 20″ X 31-1/4″
WEIGHT, APPROX: 1,000 LBS
MOTOR, 2 SPEED HI-LOW, TOTALLY ENCLOSED: 2.2 HP / 1.6 kw
ELECTRICS: 440 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH
POWER DOWN FEED
FORWARD/REVERSE SWITCH
COLUMN IS INTERNALLY RIBBED FOR EXTRA STRENGTH

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
