176 Ton BAILEIGH® Hydraulic Workshop Press - $RFQ

Item Number: #00065329
176 Ton BAILEIGH&#174; Hydraulic Workshop Press

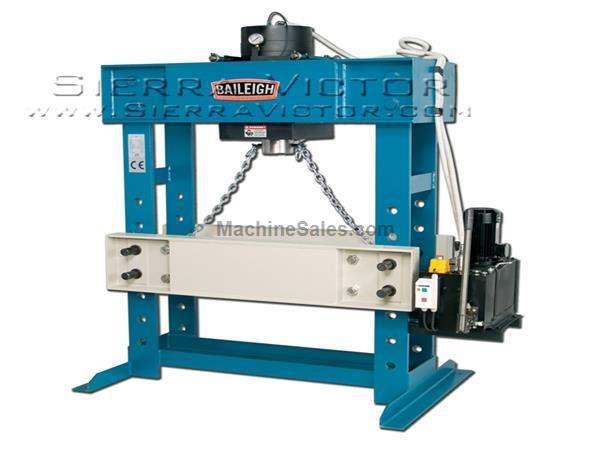

176 Ton BAILEIGH® Hydraulic Workshop Press

Stock Code:  HSP-176M
Price: $RFQ
Subcategory:

H - Frame Presses

Tonnage176T
Manufacturer:  Baileigh
Model:  HSP-176M
Condition: New

CALL FOR BEST PRICING!

FEATURES:
Do you have something that requires a lot of tonnage to press? If so the HSP-176M from Baileigh Industrial might just be your perfect press. Built to last for years in any environment, the HSP-176M heavy duty shop press combines all the knowledge that we gained from our other presses. In order to handle a full 176 tons of pressure put out by its industrial grade hydraulic system, the frame on the HSP-176M has to be strong, and because it is built from 3/8” steel plate and fully welded for structural integrity it is.
The HSP-176M uses a 4 hp 220 volt three phase motor to run the industrial grade hydraulic system. The hydraulic system is a two speed system that has rapid advance speed and slower approach speed making operation a breeze. The operator can chose operate the ram in automatic (motorized) or manual (hand pump) for even more control.
The HSP-176M heavy duty shop press features, automatic piston return, two speed down movement with pressure regulator, chrome piston, head screw, and a cylinder that is moveable left or right within the framework itself. The working table on the HSP-176M has two sets of supports made from 3” round stock to give the most support possible. The table also has lifting chains that attach to the ram and allow adjustment of the table height using the motor. Optional vee blocks are also available.
MADE IN POLAND

SPECIFICATIONS:
Max Capacity: 176 ton
Max Pressure: 4,104 psi
Working Speed: .090"/sec
Lowering Speed: .350"/sec
Return Speed: .5"/sec
Working Width: 43.3”
Moveable Cylinder: Yes
Cylinder Stroke: 15.75”
Cylinder Diameter: 12.75”
Piston Rod Diameter: 5.51”
Piston Head Diameter: 5.90”
System Oil Capacity: 4.5 gal
Oil Tank Capacity: 7.92 gal
Pump Speed (2): 1.92 / 7.50 gal/min.
RPM: 3,000
Motor: 4 hp
Power Requirement: 220 v / 3 phase
Shipping Dimensions (L/W/H): 76” / 44” / 88”
Shipping Weight: 3,465 lbs

OPTIONAL ITEMS:
Set of V-Blocks


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
