#P630 PFAUTER UNIVERSAL VERTICAL GEAR HOBBING MACHINE - $RFQ

Item Number: #00055803

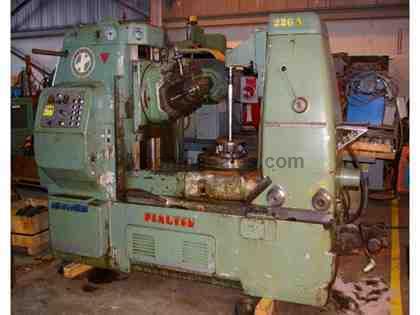

#P630 PFAUTER UNIVERSAL VERTICAL GEAR HOBBING MACHINE





#P630 PFAUTER UNIVERSAL VERTICAL GEAR HOBBING MACHINE

Stock Code:  60437
Price: $RFQ
Subcategory:

Gear Hobbers - Vertical

Maximum gear diameter24"
Year of Manufacture:  1963
Manufacturer:  Pfauter
Model:  P630
Condition: Used

#P630 PFAUTER UNIVERSAL VERTICAL GEAR HOBBING MACHINE
MODEL P630
MANUFACTURED 1963
RACO Stock Number R060437


MAXIMUM WORK PIECE DIAMETER ------------------ 24"
MAXIMUM MODULE PITCH @ 57% MACHINABILITY --- 2.5 DP
MAXIMUM AXIAL TRAVEL --------------------------- 17"
MAXIMUM NUMBER OF TEETH:
STANDARD SINGLE START INDEX DRIVE ----------- 8 TEETH
CENTER DISTANCE WORKPIECE/HOB, MAXIMUM ----- 16.73"
CENTER DISTANCE WORKPIECE/HOB, MINIMUM ------ 1.97"
TABLE DIAMETER ---------------------------------- 21.65"
TABLE BORE DIAMETER ---------------------------- 4.92"
WORK ARBOR DIAMETER --------------------------- 1.41"
ADAPTOR TAPER OF HOB ARBORS ------------------ #5 M.T.
MAXIMUM DIMENSION OF HOB, STANDARD HEAD ---- 7" DIA. X 8.5"L
MAXIMUM HOB SHIFT TRAVEL ---------------------- 8"
HOB SPEEDS, VARIABLE --------------------------- 62 TO 390 RPM
RADIAL FEED ------------------------------------- .004 TO .070 IPR
TANGENTIAL FEED -------------------------------- .006 TO .090 IPR
MAIN DRIVE MOTOR ------------------------------- 10 HP

EQUIPPED WITH ---

UNIVERSAL HOB HEAD
TAILSTOCK WITH CENTER SUPPORT
DIFFERENTIAL
AUTOMATIC TWO CUT WORK CYCLES
CHIP CONVEYOR
COOLANT SYSTEM


WEIGHT: 18000 LBS.

This machine is listed for sale by Raco Industrial Corporation located in Des Plaines, Illinois
