16" x 60" BIRMINGHAM® High Speed Precision Gap Bed Lathe - $RFQ

Item Number: #00064567
16&quot; x 60&quot; BIRMINGHAM&#174; High Speed Precision Gap Bed Lathe

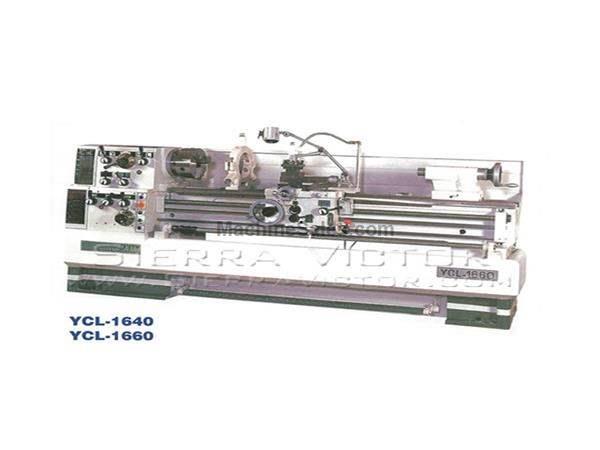

16" x 60" BIRMINGHAM® High Speed Precision Gap Bed Lathe

Stock Code:  YCL-1660
Price: $RFQ
Subcategory:

Gap Lathes - Removable Gap

Swing16"
Centers60"
Manufacturer:  Birmingham
Model:  YCL-1660
Condition: New

CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
One-piece cast iron base
No change gears required
D1-6 Spindle with 2-9/32" bore
Main spindle hardened & precision ground
Bed made of fine grain high tensile cast iron
Bedways induction hardened & precision ground
All gears & shafts hardened & precision ground
Main spindle supported at 3-point by precisions bearings

STANDARD EQUIPMENT:
Follow rest
14" Face plate
7-1/2" Steady rest
10" 3-jaw chuck
12" 4-jaw chuck
Operation & parts manuals
Taper Turning Attachment
Coolant system
Halogen work light
Removable Gap
4-way tool post
Thread chasing dial
Hand oil pump for ways
Centers & Sleeve
Tool kit with tools
Automatic kick-out longitudinal carriage stop
Full length foot brake
Full length splash guard

SPECIFICATIONS:
CAPACITY
Max. swing over bed: 16-1/8"
Max. length of workpiece: 60"
Max. swing over carriage: 8-13/16"
Max. swing in gap: 25-3/16"
Effective length in gap: 9-1/2"
Width of bed: 11-13/16"

HEADSTOCK
Spindle nose: D1-6
Diameter of spindle thru bore: 2-9/32"
Taper of spindle center: MT #6 (sleeve #6 / #4)
Spindle speeds: 25 - 2000 rpm, 12 steps

FEEDS & THREADS
Longitudinal feeds: .0011" - .0633" / rev., 42 kinds
Cross feeds: .00033" - .01837" / rev., 42 kinds
Metric threads: 0.1 - 14mm, 41 kinds
Inch threads: 112 - 2 TPI, 60 kinds
Module threads: 0.1 - 7mm, 34 kinds
Diametral pitch threads: 112 - 4 DP, 50 kinds

CARRIAGE
Max. travel of cross slide: 12-3/16"
Max. travel of top slide: 5"

TAILSTOCK
Diameter of tailstock quill: 2-3/8"
Taper of tailstock quill center: MT #4
Max. travel of tailstock quill: 4-13/16"

MOTORS
Power of main motor: 7-1/2 HP
Power of coolant pump: 1/8 HP

MISCELLANEOUS
Overall dimensions approx. (L x W x H): 107" x 41" x 53"
Net weight, approx (lbs.): 5,100

OPTIONAL ITEMS:
Quick tool changer
5-C lever type collet closer

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

This machine is listed for sale by Sierra Victor Industries located in Port Orange, Florida
