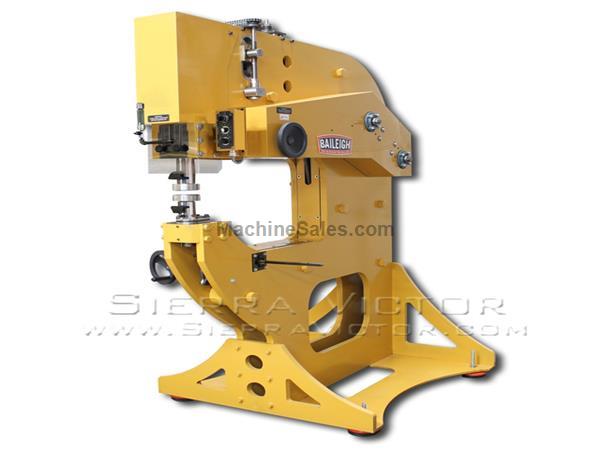

37" x 16 ga. BAILEIGH® Power Hammer - $RFQ

Item Number: #00082189
37&quot; x 16 ga. BAILEIGH&#174; Power Hammer





37" x 16 ga. BAILEIGH® Power Hammer

Stock Code:  MH-37HD
Price: $RFQ
Subcategory:

Forging Hammers - Electric

Manufacturer:  Baileigh
Model:  MH-37HD
Condition: New

CALL FOR BEST PRICING!

FEATURES:
The MH-37HD power hammer from Baileigh Industrial takes metal shaping to new heights. This monster is truly a do it all machine. We have taken all the knowledge we have gathered from the MH-19 and uped the capacities. The MH in MH-37HD stands for multi-hammer because if does multiple things, but unlike other combination machines that you see, the MH-37HD does them better than all of the stand alone machines. There truly is nothing that this machine can’t do. The MH-37HD power hammer is a 220 volt Three phase machine has the ability to transform itself from a rigid style like a Pullmax® style machine, to a spring slapping style like a Yoder® style machine.
When operating in the rigid mode, there is no "give" between the die heads. Used for short stroke shaping, flanging. Tooling designs and profiles are endless, but some of the options are mechanical shrinking, stretching dies, flanging dies, and louvers.
The spring setup with "Throw the die" causing a dead blow hammering effect. When in this mode the total amount of pressure applied when the dies hit the metal is increase exponentially. This mode would be used for aggressive shrinking and planishing, many different tooling profiles can be used.
The MH-37HD uses an inverter to obtain various speeds for operation. Speeds range from 0 to 1500 beats per minute, speed is adjusted one of two ways; either with the operator controlled foot pedal or on the operator panel where he/she can lock in their speed. Another key feature of the MH-37HD power hammer is “on the fly” stroke adjustments. These stroke adjustments range from 0.1” to .750”.
VARIABLE FOOT SPEED CONTROL WITH ADJUSTABLE LIMIT
CAPACITY (RATED BY SHRINKING ABILITY) 1/8 STEEL / 1/4" SOFT ALUM.
REPLACEABLE MAIN HAMMERING SPRINGS
POWER HAMMER MODE AND RIGID MODE VIA SHEAR PIN QUICK RELEASE DIE CHANGES
QUICK RELEASE LOWER DIE ANVIL
WORK LIGHT
Made in United States

INCLUDED TOOLING:
LARGE SHRINK DIE SET FLAT TOP MASTER DIE
1.0 X 6.0 PLANNISH DIE
36.0R DIE
24.0R DIE
12.0R DIE
LINEAR STRETCH DIE

SPECIFICATIONS:
Motor Hp: 5 HP
Speed: 0 – 1500 beats / minute
Mild Steel Capacity: 16 ga.
Tooling Height Adjustment: 2"
Throat Depth: 37"
Capacity (Mild Steel): .125"
Aluminum Capacity: .250" Soft
Length Of Stroke Adj: 0.1" - 0.75"
Power: 220V / 3-phase
Shipping Dimensions (L/W/H): 72" x 60" x 90"
Shipping Weight: 6,000 lbs.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
