No. GK21, DECKEL, 3 dminesional pantograph engraving and profile miler - $RFQ

Item Number: #00048797

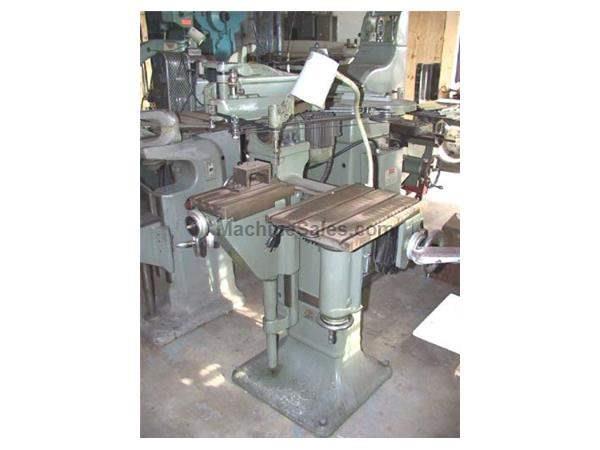

No. GK21, DECKEL, 3 dminesional pantograph engraving and profile miler





No. GK21, DECKEL, 3 dminesional pantograph engraving and profile miler

Stock Code:  773
Price: $RFQ
Subcategory:

Engravers

Manufacturer:  Deckel
Model:  GK21
Condition: Used

Model number GK21

SPECIFICATIONS:
Ratios--minimum 1:10
--maximum 1:1.5
Maximum collet capacity 5/16" (8mm)
Vertical spindle adjustment--fine 5/64" (2mm)
--coarse 1/4" (6mm)
Spindle speed--number 23
--range 475 to 20,000 rpm
Size of worktable 7-7/8" x 13-3/4"
(200mm x 350mm)
Maximum distance spindle to table 13-3/4" (350mm)
Feed of worktable--longitudinal 5-7/8" (150mm)
--cross 11-3/4" (300mm)
Size of clamping area 12-5/8" x 17-3/4"
(320mm x 450mm)
Maximum distance arm to copy surface 9-7/16" (240mm)
Swivel range 360 degrees
Motor .46/.54 HP
Electrics 220/3/60
Weight, approx. 1,000 lbs.
Dimensions (L x W x H) 50" x 41" x 59"

EQUIPPED WITH:
Straightedge attachment, Copy holder, Worklight

This machine is listed for sale by A M Metalmaq located in Hialeah, Florida
