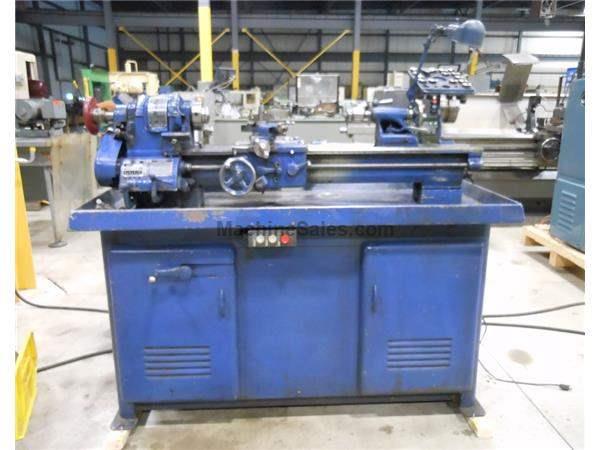

South Bend CL8187R8 Straight Bed Engine Lathe, 10" x 33" - $RFQ

Item Number: #00075185
South Bend CL8187R8 Straight Bed Engine Lathe, 10&quot; x 33&quot;





South Bend CL8187R8 Straight Bed Engine Lathe, 10" x 33"

Stock Code:  HB-19923
Price: $RFQ
Subcategory:

Engine Lathes

Swing10"
Centers33"
Manufacturer:  South-Bend
Model:  CL8187R8
Condition: Used

SPECIFICATIONS

SWING OVER BED: 10"
SWING OVER CROSS SLIDE: 6"
DISTANCE BETWEEN CENTERS: 33"
HOLE THROUGH CENTER: 1-1/4"
SPINDLE SPEED RANGE (24): 27 TO 1400 RPM
THREAD RANGE (70): 4 TO 480 TPI
TAPER IN TAILSTOCK: #3 MT

GENERAL

DIMENSIONS: 66” LR X 30” FB X 52” H
ELECTRICS: 440 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH

5C COLLET CLOSER
FACE PLATE
3-JAW CHUCK
TAPER ATTACHMENT
TAILSTOCK
TOOL POST
D1-4 SPINDLE NOSE
FOLLOW REST
STEADY REST
MICROMETER STOP
MISCELLANEOUS COLLETS

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
