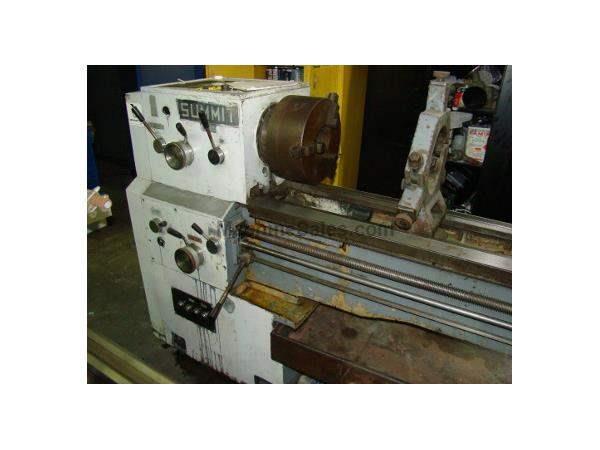

19" x 80" cc, SUMMIT, gap, 3J, 4WTP, SR, CL, 1976 - $RFQ

Item Number: #00073789
19&#034; x 80&#034; cc, SUMMIT, gap, 3J, 4WTP, SR, CL, 1976

19" x 80" cc, SUMMIT, gap, 3J, 4WTP, SR, CL, 1976
Stock Code:  6562
Price: $RFQ

Engine Lathes

Manufacturer:  Summit
Condition: Used
Year of Manufacture 1976

Swing over bedways 19"
Swing over cross slide 10-3/4"
Swing over gap 27"
Distance between centers 80"
Spindle speeds--number 12
Spindle speeds--range 22-1500 rpm
Hole thru spindle 4-1/8""
Spindle nose type D1-8 camlock
Headstock center No 5MT
Threads per inch--number 56
--range 3/4 to 92
Metric threads--number 35
--range 0.25 to 23
Longitudinal feeds--number 56
--range .0010 to .129
Compound rest travel 6-1/4"
Cross slide travel 13-3/4"
Tailstock barrel travel 8-1/2"
Tailstock barrel diameter 3"
Tailstock barrel taper No 5MT
Width of bed 13-3/4"
Hardened & ground inserted ways yes
Main drive motor 10 HP
Electrics 220/440/3/60
Overall weight 6800 lbs

Three (3) jaw chuck, 4 way toolpost Steady rest, Coolant
Thread dial, Leveling pads
This machine is listed for sale by A M Metalmaq located in Hialeah, Florida
