1969 -AMERICAN PACEMAKER STYLE H HEAVY DUTY, STRAIGHT BED ENGINE LATHE, 39-3/4” X 48” - $RFQ

Item Number: #00068322

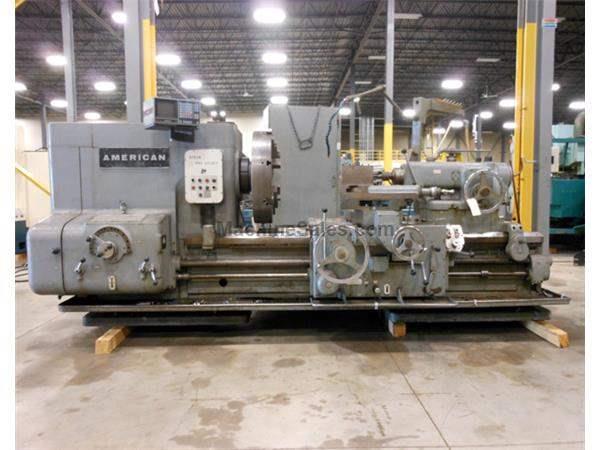

1969 -AMERICAN PACEMAKER STYLE H HEAVY DUTY, STRAIGHT BED ENGINE LATHE, 39-3/4” X 48”





1969 -AMERICAN PACEMAKER STYLE H HEAVY DUTY, STRAIGHT BED ENGINE LATHE, 39-3/4” X 48”

Stock Code:  NK-19488
Price: $RFQ
Subcategory:

Engine Lathes

Swing39.75"
Centers48"
Year of Manufacture:  1969
Manufacturer:  American-Pacemaker
Model:  H
Condition: Used

SPECIFICATIONS
SWING OVER BED (ACTUAL): 39-3/4″
SWING OVER CARRIAGE WINGS: 36-1/2”
SWING OVER CROSS SLIDE: 26″
CENTERS: 48”
SPINDLE SPEEDS: 7.5 – 750 RPM

HEADSTOCK
LENGTH ON BED: 49-1/2”
RADIAL LOAD CAPACITY,
FRONT BEARING AT 100 RPM: 53,300 LBS
THRUST LOAD CAPACITY AT 100 RPM: 47,700 LBS
RADIAL LOAD CAPACITY, CENTER BEARING AT 100 RPM: 29,300 LBS
DIAMETER OF HOLE IN SPINDLE TO CLEAR BAR: 2-7/8”
TAPER OF CENTER: NO 6

BED
WIDTH: 25”
DEPTH: 20-3/4”

CARRIAGE
LENGTH OF CARRIAGE ON BED: 42”
SQUARE INCHES OF CARRIAGE BEARING ON BED: 296”
WIDTH OF CARRIAGE BRIDGE: 12”
QUICK CHANGE GEAR BOX
NUMBER OF THREADS THAT CAN BE CUT: 60
RANGE OF THREADS CAN BE CUT PER INCH: ½ TO 30
NUMBER OF FEEDS CAN BE CUT: 60
RANGE OF FEEDS IN THOUSANDTHS
PER REVOLUTION: .004 TO .240
DIAMETER OF LEADSCREW: 2-1/2”
PITCH OF LEADSCREW: ½ PITCH

COMPOUND REST
TRAVEL OF TOP SLIDE: 6”
ROUND TOOL HOLDER (SIZE OF TOOL): 1” X 2”
TOOL HOLDER SIZE: NO 5
HIGH DUTY TOOL HOLDER (SIZE OF TOOL): 1”X 2”
4-WAY TOOL BLOCK (SIZE OF TOOL): 1-1/2” X 1-1/2”

TAILSTOCK
LENGTH OF BED: 25-3/4”
DIAMETER OF TAILSTOCK SPINDLE: 6”
LENGTH OF TAILSTOCK SPINDLE: 36-3/4”
SET OVER TAILSTOCK, ON SIDE: 1/8”
SPINDLE TRAVEL: 15”
TAPER: MT-6

GENERAL
WEIGHT: 21,500 LBS
DIMENSIONS: 132″ L-R, 60″ F-B, 66″ H
ELECTRICS: 440 VOLTS, 3 PH, 60 CYC, 40HP

EQUIPPED WITH
31” 4-JAW CHUCK/FACE PLATE
ACU-RITE TURNVISION 3-AXIS DRO
TOOLPOST FOR BORING BAR
COOLANT WITH PUMP
TAILSTOCK WITH LIVE CENTER

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
