USED JONES & LAMSON MODEL FC-14 OPTICAL COMPARATOR, 14" - $RFQ

Item Number: #00068265
USED JONES & LAMSON MODEL FC-14 OPTICAL COMPARATOR, 14&quot;

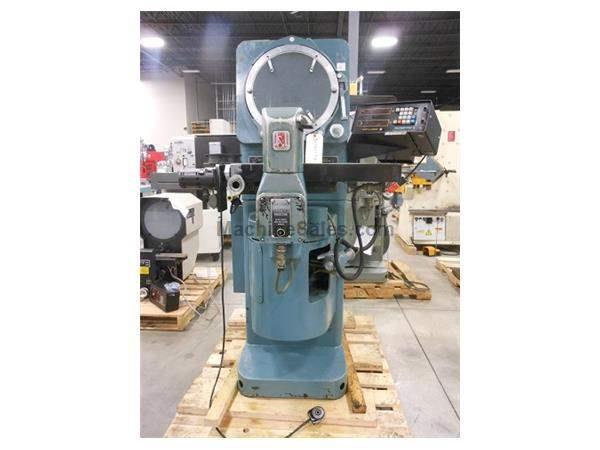

USED JONES & LAMSON MODEL FC-14 OPTICAL COMPARATOR, 14"

Stock Code:  JV-19600TK
Price: $RFQ
Subcategory:

Comparators

Screen diameter14"
Manufacturer:  Jones & Lamson
Model:  FC-14
Condition: Used

SPECIFICATIONS
SCREEN DIAMETER: 14″ C/L GLASS CHART
WORK TABLE: 6″ X 30″ HARD CHROMIUM PLATED

MEASURING CAPACITY
LONGITUDINAL TABLE TRAVEL: 8″ MANUAL TRAVEL W/ ACU-RITE GLASS SCALE (.001mm/.00005″ RESOLUTION)
VERTICAL TABLE TRAVEL: 5″ POWER ELEVATION TRAVEL W/ ACU-RITE GLASS SCALE (.001mm/.00005″ RESOLUTION)
ANGULAR MEASURING CAPACITY: 360 DEG. POWER CHART ROTATION, 1 MINUTE RESOLUTION
CROSS TRAVEL FOR FOCUSING: 1-3/8″
LENS MOUNT: 6 POSITION LENS SELECTOR
LENS CENTERLINE TO TABLE: 1-1/4″ MINIMUM / 5-1/4″ MAXIMUM

GENERAL
FLOOR SPACE: 4’ L-R X 4’4″ F-B X 69″ H
WEIGHT: 1,300 LBS
ELECTRICAL REQUIREMENTS: 118 VOLTS, 1 PH, 60 CYC
PROJECTION LAMP SOURCE: 250 WATT
REFLECTION LAMP SOURCE: 1200 WATT / 120 VOLT

EQUIPPED WITH
10X, 20X, 31.25X & 50X MAGNIFICATION LENSES (ERECT IMAGE)
DECIMETRIC II DRO
POWER ELEVATION

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
