Machine Tools > Saws > Cold & Carbide Saws - Metal    < Back

14" Blade Dia Scotchman CPO 350 PK Manual *Made in the USA* COLD SAW, with power clamp; 4 cutting speeds to choose from - $7,095

Item Number: #00085476
14&quot; Blade Dia Scotchman CPO 350 PK Manual *Made in the USA* COLD SAW, with power clamp; 4 cutting speeds to choose from





14" Blade Dia Scotchman CPO 350 PK Manual *Made in the USA* COLD SAW, with power clamp; 4 cutting speeds to choose from

Stock Code:  136627
Price: $7,095
Subcategory:

Cold & Carbide Saws - Metal

Blade diameter14"
Manufacturer:  Scotchman
Model:  CPO 350 PK MANUAL *MADE I
Condition: New

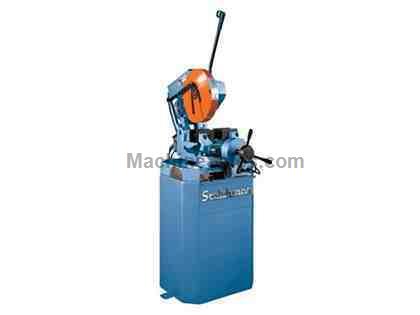

NEW SCOTCHMAN MANUAL COLD SAW


w/POWER CLAMP


MODEL: CPO 350 PK





*MADE IN THE USA*





STANDARD EQUIPMENT & FEATURES:


Air-operated clamp for material vise


Operator controlled trigger switch


Double self-centering vise assures burr-free cuts


Miter capabilities 45 degrees left to 45 degrees right


Miter locking device: quick, accurate setting-stops at 45 degrees left, 90 degrees, and 45 degrees right


Capable of slotting


Two cutting speeds


Double reduction, hardened and ground worm and wheel gear box


Worm wheel of top quality bronze


Chip drawer


Seven-gallon coolant tank with pump


One 12-1/2" diameter (315 mm) HSS blade


One blade wrench


One gallon concentrated coolant


230 or 460 volt/3-ph electrics (must specify voltage)


Three-year warranty on parts





MAXIMUM CAPACITIES:


WITH A 350 MM/13-7/8" BLADE





TUBING


Round


 @ 90 degrees: 4-1/2" (114 mm)


 @ 45 degrees: 4" (102 mm)


Square


 @ 90 degrees: 4-1/4" x 4-1/4" (108 x 108 mm)


 @ 45 degrees: 4" x 4" (102 x 102 mm)


Rectangle


 @ 90 degrees: 5-1/2" x 4" (140 x 120 mm)


 @ 45 degrees: 4" x 4" (102 x 102 mm)





SOLID


Round


 @ 90 degrees: 2" (51 mm)


 @ 45 degrees: 1-3/4" (44 mm)


Square


 @ 90 degrees: 2" x 2" (51 x 51 mm)


 @ 45 degrees: 1-3/4" x 1-3/4" (44 x 44 mm)





SPECIFICATIONS:





CUTTING SPEEDS (must specify when ordering)


 LT (low turn) designed for solid mild steel, solid stainless steel, & thick wall pipe


  22/44 rpm, 3 hp


 HT (high turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material


  44/88 rpm, 2.5 hp


 SS (single speed) designed for 220 1-ph applications


  44 rpm, 3 hp


 VS (variable speed) wired 230/460v 3-ph or 220v 1-ph [note: additional cost for this model]


  11-117 rpm, 5 hp





Factory wired (specify) ................... 208/230/460/575v 3-ph 60 Hz (LT, HT, & VS models)


                        ................... 220v 1-ph 60 Hz (SS & VS models only)


Maximum blade diameter .................... 14" (350 mm)


Arbor bore ................................ 1-9/16" (40 mm)


Pin spacing ............................... 4/12/64


Width ..................................... 21-7/8"


Depth ..................................... 43-1/2"


Height


 Not incl. feed handle .................... 56-1/4"


 From floor to vise ....................... 37-7/16"


Shipping weight ........................... 660 lbs. (299 kg)





OPTIONS (CALL FOR PRICING):


Blades


Variable speed control


 (recommended for cutting multiple shapes, sizes and thicknesses)


Square tube jaws


Special clamping fixture


Blade guide laser light


60" or 120" material stop roller conveyor mounted with an advanced measuring quick-loc system


 (available left to right or right to left material feed)


10' and 20' material supply track


96" or 144" SG programmable stop system


 (supplied w/roller conveyor & designed for either right to left or left to right stop position)





*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.




This machine is listed for sale by Machinery Values Inc. located in Harrison, New Jersey
