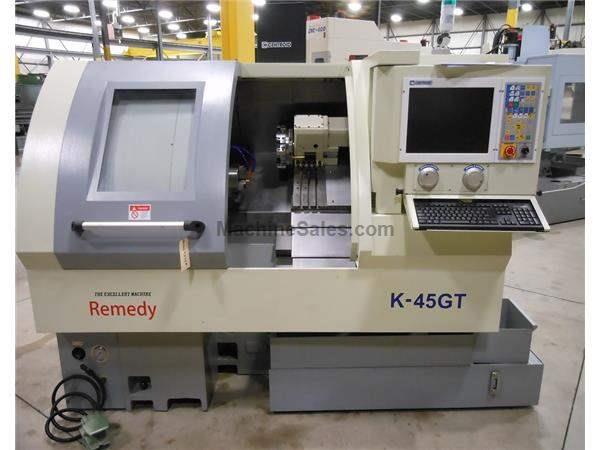

NEW REMEDY MODEL K-45GT SLANT BED GANG STYLE CNC LATHE WITH CENTROID T39W C - $RFQ

Item Number: #00068518
NEW REMEDY MODEL K-45GT SLANT BED GANG STYLE CNC LATHE WITH CENTROID T39W C





NEW REMEDY MODEL K-45GT SLANT BED GANG STYLE CNC LATHE WITH CENTROID T39W C

Stock Code:  NW-19843
Price: $RFQ
Subcategory:

CNC Combination Lathes

Swing6.7"
Year of Manufacture:  2014
Manufacturer:  Remedy
Model:  K-45GT
Condition: New

SPECIFICATIONS

TABLE: SLANT BED LATHE
LONGITUDINAL TRAVEL (Z AXIS): 7.1”
CROSS TRAVEL (X AXIS): 10”
SPINDLE NOSE: A2-5
MAX SWING: 6.7”
SPINDLE MOTOR/MAX TORQUE: 7.5 HP
SPINDLE TAPER: A2-5
SPINDLE BORE/BORE TAPER 1.8”
SPINDLE SPEEDS: 50 – 5000 RPM
TRANSMISSION OF SPINDLE & MOTOR: BELT
SPINDLE CENTER TO TABLE TOP SURFACE: 3.35”

TAILSTOCK
ID TOOLING (BORING): 1”
OD TOOLING (TURNING): 5/8”

FEED RATE
RAPID FEED RATE: 300 IPM
CUTTING FEED RATE: 200 IPM

GENERAL
DIMENSIONS: 85" LR X 60" FB x 60" H
NET WEIGHT: 6,500 LBS
ELECTRICS: 220 VOLT, 3 PH, 60 CYC

FEATURES

7.5 HP SPINDLE MOTOR W/A2-5 SPINDLE TAPER & 1.8” T/HOLE
5,000 RPM CARTRIDGE SPINDLE
LINEAR GUIDE WAYS ON THE X AND Z AXES
PRECISION DOUBLE NUT BALL SCREWS HARDENED & GROUND FOR HIGHER ACCURACY & LONGER LIFE
MEEHANITE CASTING BASE, ANNEALED AND STRESS RELIEVED FOR LONG TERM RELIABILITY
100% LASER TESTED POSITIONING ACCURACY & REPEATABILITY
METAL ENCLOSURE WITH A LARGE SLIDING FRONT DOOR
6” HYDRAULIC CHUCK AND A FOUR PIECE SET OF TOOLING
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM WITH LOW LUBE ALARM
X AND Z MPG MANUAL HAND WHEEL
GANG TOOLING PLATE & 8 POSITION TURRET

EQUIPPED WITH

CENTROID T39W WINDOWS BASED CONTROL WITH 15" LCD
SHOP FLOOR PROGRAMMING/CONVERSATIONAL
INDUSTRIAL PC
4 GB SOLID STATE HARD DRIVE
RS-232 & USB 2.0 PORTS
6 INCH HYDRAULIC CHUCK
AUTO LUBE SYSTEM

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
