Table type Horizontal Boring Machine- WH 10 CNC - $RFQ

Item Number: #00075504

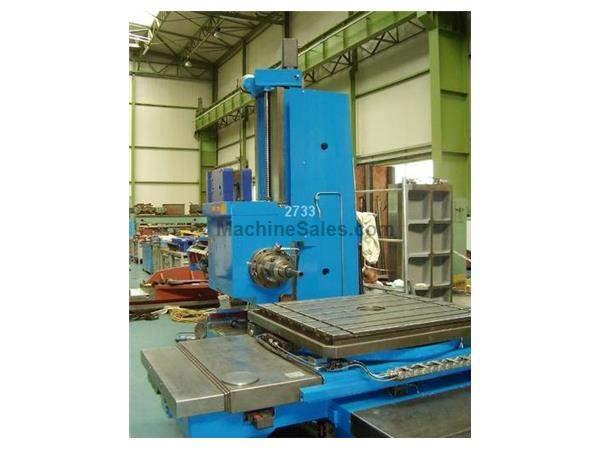

Table type Horizontal Boring Machine- WH 10 CNC





Table type Horizontal Boring Machine- WH 10 CNC

Price: $RFQ
Subcategory:

Boring Mills - Horizontal Table Type CNC

Spindle diameter100"
X axis travel1250"
Year of Manufacture:  2011
Manufacturer:  Tos
Model:  WH 10 CNC
Condition: Rebuilt

The technical specifications are below

Overhaul: 2011
Diameter of working spindle: 100 mm
Cross adjustment of table (X): 1250 mm
Motion of work head on frame (Y): 900 (1120) mm
Longitudinal adjustment of pedestal (Z): 1000 mm
Slip out of working spindle (W): 630 mm
Clamping area of table: 1000 x 1120 mm
Taper in spindle: ISO 50
Main motor output: 20 kW
Max. weight of workpiece: 3000 kg
Rotation of spindle: 10 - 1120 (1800) U/min
Total input: 50 kVA
Dimensions l x w x h: 4746 x 3000 x 3340 mm
Machine weight: 13400 kg

CNC control: HEIDENHAIN TNC 426

This machine is listed for sale by located in India
