2" BAILEIGH® Tube & Pipe Bender - $RFQ

Item Number: #00063003
2&quot; BAILEIGH&#174; Tube &amp; Pipe Bender

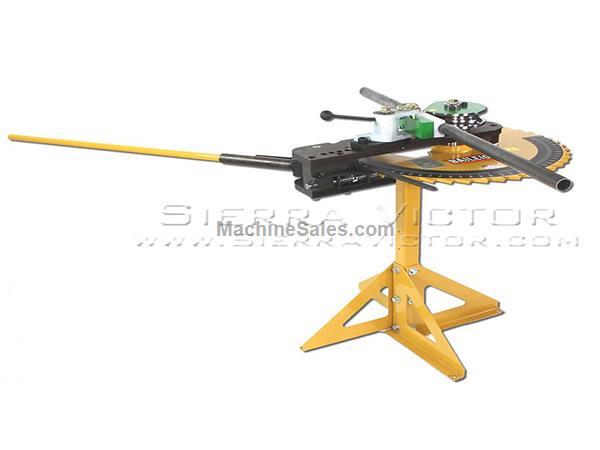

2" BAILEIGH® Tube & Pipe Bender
Stock Code:  RDB-100
Price: $RFQ

Benders - Pipe Tube & Bar

Manufacturer:  Bail
Model:  RDB-100
Condition: New

Looking for a top quality manual tubing bender to help out with production in your shop? The RDB-100 from Baileigh Industrial is perfect for the industrial fabricator that needs to bend lower production runs with very professional looking bends. Constructed of steel plate the RDB-100 ships mostly assembled with only the handle and stand needing to be attached. Like all top loading tube benders from Baileigh Industrial, the RDB-100 was made to accept hundreds of round and square tubing die sets as well as round pipe dies sets. The RDB-100 is capable of bending up to 1-3/4" OD tubing with a maximum wall thickness of .095" and 1" schedule 40 pipe.
The RDB-100 manual tubing bender from Baileigh Industrial uses a large diameter indexing plate that allows the operator to bend up to 206 degrees (180 degrees plus spring back) without having to re-index and re-pin common on most other manual tube benders on the market. A tension spring back mechanism holds the position as the bend mechanism grabs the next tooth on the index wheel. When requirements are for lighter gauge materials the RDB-100 ratcheting bend system can be shut off and the handle can be put into a manual override housing that allows the operator to simply walk around the manual bender and bend without the power of the indexing unit.
The RDB-100 includes the stand, degree dial, and handle. A large degree scale displays your bend angle and all the tooling has a start of bend indicator line so complex bends can be made with ease. A quick release counter die system allows for quick loading and unloading of the material.

Mild Steel Pipe (Schedule 40): 1"
Aluminum Pipe (Schedule 40): 1"
Stainless Steel Pipe (Schedule 40): .75"
Stainless Steel Round Tube Wall: 1.5" (.083)
Mild Steel Round Tube (Wall): 1.75" (.083)
Chromolly Round Tube (Wall): 1.5" (.083)
Aluminum Round Tube Wall: 2" (.125)
Mild Steel Solid Rod: 1"
Mild Steel Square Tube (Wall): 1" (.125)
Minimum OD: .25"
Maximum Speed to 180 Degrees: N/A
Maximum Center Line Radius (CLR): 10.5"
Minimum CLR: .5"
Power Requirements: N/A
Length: 42"
Width: 22"
Height: 42"
Weight: 290 lbs.
Shipping Dimensions: 42" x 22" 42"

B-LUBECP: Biodegradable Bend Lube: 8oz
B-LUBEPT: Biodegradable Bend Lubes: 16 oz
B-LUBEQT: Biodegradable Bend Lubes: 32 oz
ORG-3600: Outside Radius Gauge
IRG-3600: Inside Radius Gauge
AF-360D: 360 Degree Digital Angle Finder
AF-360D-Holder: Clamp and Holder for AF-360D Angle Finder
RT-1B: Round Tube Die Package
RT-2B: Round Tube Die Package
RT-3B: Round Tube Die Package
RT-4B: Round Tube Die Package
RT-5B: Round Tube Die Package
RP-1B: Round Pipe Die Package
RP-2B: Round Pipe Die Package
RP-3B: Round Pipe Die Package
ST-1B: Square Tube Die Package
ST-2B: Square Tube Die Package

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.
