2-1/2" BAILEIGH® Hydraulic Rotary Draw Bender - $RFQ

Item Number: #00064636
2-1/2&quot; BAILEIGH&#174; Hydraulic Rotary Draw Bender

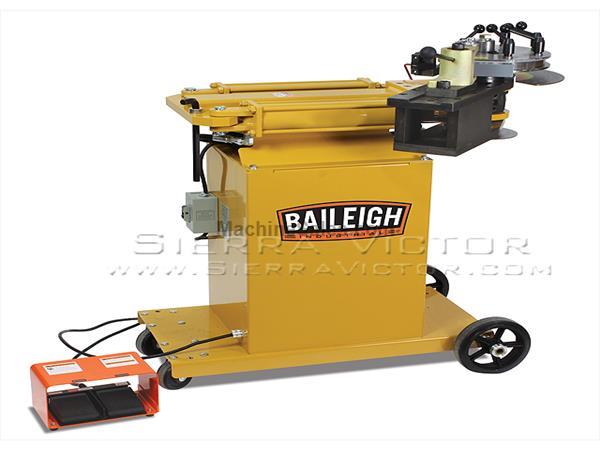

2-1/2" BAILEIGH® Hydraulic Rotary Draw Bender
Stock Code:  RDB-150-AS
Price: $RFQ

Benders - Hydraulic

Manufacturer:  Baileigh
Model:  RDB-150-AS
Condition: New

Made in the USA

The RDB-150-AS pipe bender is quite frankly the best buy in hydraulic pipe benders today. The machine is based from the popular RDB-150 which broke new ground in 2002 when it became the first hydraulic tube bender to consistently and accurately bend tube and pipe to 180 degrees in one shot. The RDB-150-AS takes the hydraulic pipe bender to the next level by adding an accurate auto stop feature that allows the operator to set a desired bend degree and the machine will stop at that degree every time, without worry. This will allow fabrication shops to save time and money by being as efficient as they can be

The RDB-150-AS uses a low pressure hydraulic system that operates on 110 volts, but many other configurations of electrical requirements are available upon request. This hydraulic system allows the RDB-150-AS to bend 2" Schedule 40 pipe and up to 2-1/2" tubing with a wall thickness of .120" mild steel. The RDB-150-AS accepts all Baileigh Industrial “drop on” tooling, giving you thousands of choices for your application. This style of tooling is preferred because the finished product possibilities are far greater then with conventional “sandwiched” bending die designs. Another added bonus is that If we don’t have something you need in stock, Baileigh Industrial will make custom tooling sets.

Other features of the RDB-150-AS are an easy to read degree indicator and quick release counter die system, which allows the pipe bender to be loaded and unloaded quickly. Like the RDB-150 the base of the RDB-150-AS tube bender also includes wheels, this help with shops that are especially small and allows the bender to be pushed out of the way when not in use.

Mild Steel Pipe (Schedule 40): 2"
Aluminum Pipe (Schedule 40): 2"
Stainless Steel Pipe (Schedule 40): 1.5"
Mild Steel Round Tube (Wall): 2.5" (.125)
Aluminum Round Tube (Wall): 2.5" (.156)
Stainless Steel Round Tube (Wall): 2.375" (.125)
Chromolly Round Tube (Wall): 2" (.125)
Mild Steel Solid Rod: 1.25"
Mild Steel Square Tube (Wall): 2" (.125)
Minimum OD: .25"
Maximum Speed to 180 Degrees: 30 Seconds
Maximum Center Line Radius (CLR): *7-8"
Minimum CLR: .5"
Power Requirements: 110V
Length: 44"
Width: 28"
Height: 42"
Shipping Weight (Lbs.): 600
Shipping Dimensions: 44" x 28" x 42"

B-LUBECP: Biodegradable Bend Lube: 8oz
B-LUBEPT: Biodegradable Bend Lubes: 16 oz
B-LUBEQT: Biodegradable Bend Lubes: 32 oz
ORG-3600: Outside Radius Gauge
IRG-3600: Inside Radius Gauge
AF-360D: 360 Degree Digital Angle Finder
AF-360D-Holder: Clamp and Holder for AF-360D Angle Finder
RT-1B: Round Tube Die Package
RT-2B: Round Tube Die Package
RT-3B: Round Tube Die Package
RT-4B: Round Tube Die Package
RT-5B: Round Tube Die Package
RP-1B: Round Pipe Die Package
RP-2B: Round Pipe Die Package
RP-3B: Round Pipe Die Package
ST-1B: Square Tube Die Package
ST-2B: Square Tube Die Package

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.
