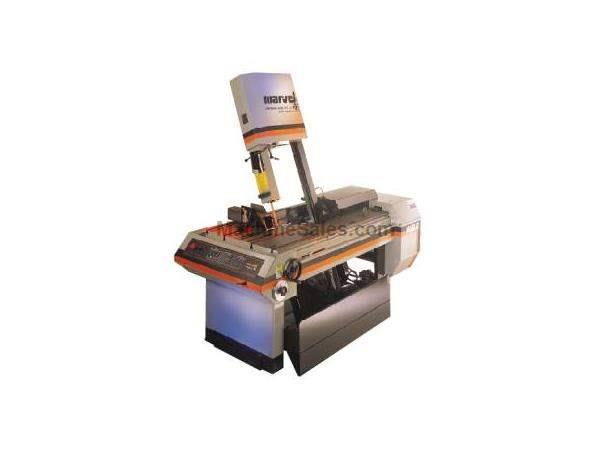

NEW MARVEL SERIES 8 MARK II UNIVERSAL VERTICAL BANDSAW, 18" X 22" - $RFQ

Item Number: #00075193
NEW MARVEL SERIES 8 MARK II UNIVERSAL VERTICAL BANDSAW, 18&quot; X 22&quot;





NEW MARVEL SERIES 8 MARK II UNIVERSAL VERTICAL BANDSAW, 18" X 22"

Stock Code:  NW-19950
Price: $RFQ
Subcategory:

Bandsaws Vertical - Metal

Throat capacity18"
Height capacity22"
Year of Manufacture:  2014
Manufacturer:  Marvel
Model:  SERIES 8 MARK I
Condition: New

SPECIFICATIONS

CAPACITY
HORIZONTAL: 18" STD COLUMN
VERTICAL: 22" STD COLUMN
VERTICAL @ 45°: 12-1/2" STD COLUMN

SPEED RANGE (INF. VARIABLE): 50 – 450 FPM
FEED FORCE: 0 – 140 LBS
BLADE DIMENSIONS: 14'6" L X 1" W X .035" THICK
WHEEL DIAMETER: 18"
TEE SLOTS: 4 (TWO SIZES)
WORKING SURFACE: 24.15" X 33"
TABLE HEIGHT: 34 1/2" W/O LEVELING SCREWS
MAXIMUM VISE OPENING: 21"
VISE HEIGHT: 6"
MAIN MOTOR: 2 HP, 1800 RPM
COOLANT PUMP MOTOR: 1/4 HP, 3600 RPM
COOLANT CAPACITY: 20 GALLONS

GENERAL

OVERALL DIMENSIONS: 90" L X 79" W X 84-1/2" H
DOMESTIC SHIPPING WEIGHT: 2,870 LBS
ELECTRICS: 230 VOLTS, 3 PH, 60 CYC

STANDARD EQUIPMENT

MARVEL WELDED-EDGE BLADE
MANUALS CONSISTING OF PARTS LIST, OPERATING AND MAINTENANCE MANUAL, INSTALLATION PLAN, WIRING AND ELEMENTARY ELECTRIC DIAGRAMS, INCLUDING ELECTRICAL COMPONENT LIST

FEATURES

FRONT MOUNTED SPEED CONTROL ALLOWS BLADE SPEED TO BE ADJUSTED
FROM OPERATOR'S CONTROL STATION.

SPEED RANGE: 50 - 450 FPM (15 - 137 M/MIN) INFINITELY VARIABLE SPEED
DRIVE SYSTEM.

FEED RANGE: 0 - 140 LBS. INFINITELY VARIABLE DIRECT READING SCALE
BALANCE BEAM.

T-SLOTTED WORK TABLE: WORK AREA 24.25" X 33"; TABLE HEIGHT 34.5"
FOUR MACHINED T-SLOT ACCEPT .625" T-BOLTS

MITER CUTTING: COLUMN AND BLADE TILT UP TO 45 DEGREES RIGHT AND
LEFT OF VERTICAL; WORK ALWAYS STATIONARY. BUILT-IN PROTRACTOR.

QUICK-ACTION VISE: MAXIMUM OPENING 20". JAWS CAN BE SHIFTED TO
EITHER RIGHT OR LEFT SIDE OF BLADE. JAWS ARE 6" HIGH, 12" WIDE.

AUTOMATIC STOPS: ADJUSTABLE STOPS CAN BE PRE-SET TO STOP
ADVANCE AND RETURN OF BLADE, AND ALSO TO STOP MOTOR AT ANY
LOCATION WITHIN THE 18" TRAVEL OF THE BLADE.

COOLANT SYSTEM: BUILT-IN AVAILABLE WITH EITHER FLOOD, OR ECO DROP
SYSTEM. CONTROLLED BY ON-OFF SELECTOR SWITCH AT OPERATOR'S STATION. TANK CAPACITY 21 GALLONS.

FLUSHING HOSE: WASHES CHIPS FROM HARD TO GET AT PLACES REDUCING
CLEAN-UP TIME.

POWER CHIP BRUSH: TOGETHER WITH BLADE WIPERS AND FLOOD COOLANT
KEEP BLADE TEETH FREE OF CHIPS.

CARBIDE GUIDE SYSTEM: GUIDES ARE STATIONARY AND CAN BE RADIALLY
ADJUSTED TO PRESENT NEW GUIDING SURFACE TO THE BLADE. UPPER
AND LOWER GUIDES HAVE PRELOADED CARBIDE FACED BACK-UP BLOCKS
TO SUPPORT BACK EDGE OF BLADE.

MOTORS: MAIN: 2 HP, 1800 RPM, TOTALLY ENCLOSED FAN COOLED.
COOLANT PUMP: 1/4 HP, 3600 RPM, TOTALLY ENCLOSED MOTOR BUILT-IN
INTEGRALLY

CONTROLS: IEC FUSED DISCONNECT SWITCH AND MAGNETIC MOTOR
STARTERS, WITH OVERLOAD AND LOW-VOLTAGE PROTECTION.
TRANSFORMER PROVIDES LOW VOLTAGE CONTROL (120 VOLTS) TO ALL
PUSH BUTTONS AT OPERATOR'S CONTROL PANEL AND MACHINE LIGHTING
CIRCUITS. CONTROL APPARATUS MOUNTED IN MOISTURE PROOF NEMA
12 COMPARTMENT.

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
