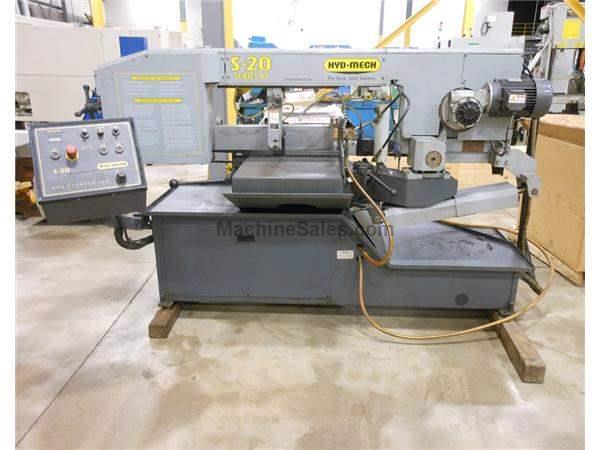

- HYD-MECH S-20 SERIES III HORZ BANDSAW - 13" X 18" - $RFQ

Item Number: #00068430
- HYD-MECH S-20 SERIES III HORZ BANDSAW  - 13&quot; X 18&quot;





- HYD-MECH S-20 SERIES III HORZ BANDSAW - 13" X 18"

Stock Code:  HB-19813
Price: $RFQ
Subcategory:

Bandsaws Horizontal - Metal

Width capacity18"
Height capacity13"
Year of Manufacture:  2006
Manufacturer:  Hyd-Mech-S-20-Series-Iii-Horz-Bandsaw
Model:  MODEL ?
Condition: New

SPECIFICATIONS

CUTTING CAPACITY AT 90 DEGREES

RECTANGULAR: 13″ X 18″
ROUND: 13″ DIAMETER

CUTTING CAPACITY AT 45 DEGREES
RECTANGULAR: 13″ X 10.75″
ROUND: 12″ DIAMETER

CUTTING CAPACITY AT 30 DEGREES
RECTANGULAR: 13″ X 7.75″
ROUND: 8.5″ DIAMETER


BLADE SIZE: 14’10″ X 1″ WIDE
THICKNESS: .035″
BLADE SPEED: 45-330 SFM
BLADE GUIDES: PRE-SET CARBIDE INSERTS
BLADE WHEEL DIAMETER: 17-3/4″
BLADE DRIVE: 3 HP (VFD)
COOLANT TANK CAPACITY: 6 US GALLONS
MITERING: 90 DEGREES TO 30 DEGREES
TABLE HEIGHT: 31″
MAXIMUM WORK LOAD: 5,000 LBS

GENERAL
WEIGHT: 2,200 LBS
DIMENSIONS: 92″ LR X 75″ FB X 52″ H
ELECTRICS: 240 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH
60 DEGREE ONE-WAY MITER CAPABILITY
CAST IRON GUIDE ARMS, ADJUSTABLE IDLER GUIDE ARM, SUPPORTED BY
LINEAR BEARINGS
SAFETY DOOR INTERLOCKS
HEAVY DUTY VISE WITH QUICK LOCKING LEVER SYSTEM
PRE-SET CARBIDE GUIDE INSERTS
MANUAL BLADE TENSION WITH LED DISPLAY ON CONTROL PANEL
BLADE BREAKAGE SWITCH
FLOOD COOLANT SYSTEM AND WASH DOWN HOSE

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
