NEW - HYD-MECH S-20 SERIES III PIVOT BANDSAW - 13" X 18" - $RFQ

Item Number: #00068287
NEW - HYD-MECH S-20 SERIES III PIVOT BANDSAW - 13&quot; X 18&quot;

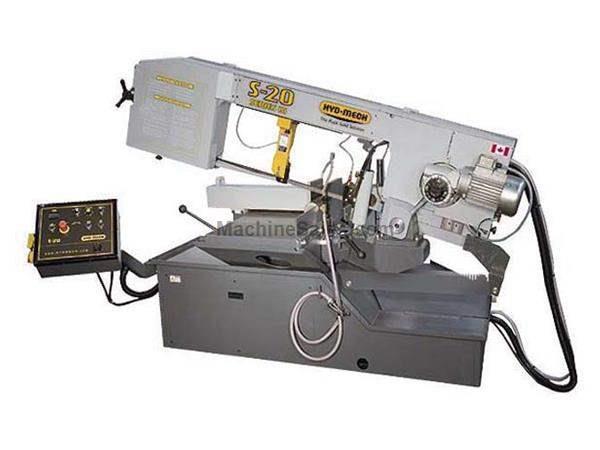

NEW - HYD-MECH S-20 SERIES III PIVOT BANDSAW - 13" X 18"

Stock Code:  NW-19300
Price: $RFQ
Subcategory:

Bandsaws Horizontal - Metal

Width capacity18"
Height capacity13"
Year of Manufacture:  2014
Manufacturer:  Hyd-Mech
Model:  S-20 SERIES III
Condition: New

SPECIFICATIONS

CUTTING CAPACITY AT 90 DEGREES
RECTANGULAR: 13″ X 18″
ROUND: 13″ DIAMETER

CUTTING CAPACITY AT 45 DEGREES
RECTANGULAR: 13″ X 10.75″
ROUND: 12″ DIAMETER

CUTTING CAPACITY AT 30 DEGREES
RECTANGULAR: 13″ X 7.75″
ROUND: 8.5″ DIAMETER

BLADE SIZE: 14’10″ X 1″ WIDE
THICKNESS: .035″
BLADE SPEED: 45-330 SFM
BLADE GUIDES: PRE-SET CARBIDE INSERTS
BLADE WHEEL DIAMETER: 17-3/4″
BLADE DRIVE: 3 HP (VFD)

COOLANT TANK CAPACITY: 6 US GALLONS
MITERING: 90 DEGREES TO 30 DEGREES
TABLE HEIGHT: 31″
MAXIMUM WORK LOAD: 5,000 LBS

GENERAL
WEIGHT: 2,200 LBS
DIMENSIONS: 92″ (W) X 75″ (L) X 52″ (H)
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

STANDARD FEATURES
60 DEGREE ONE-WAY MITER CAPABILITY
1″ X 14’10″ BLADE
17-3/4″ HEAVY DUTY CAST BAND WHEELS
3 HP DIRECT DRIVE MOTOR WITH A/C INVERTER OFFERING VARIABLE BAND SPEED FROM 45-330 SFM
CAST IRON GUIDE ARMS, ADJUSTABLE IDLER GUIDE ARM, SUPPORTED BY LINEAR BEARINGS
SAFETY DOOR INTERLOCKS
HEAVY DUTY VISE WITH QUICK LOCKING LEVER SYSTEM
PRE-SET CARBIDE GUIDE INSERTS (NO ADJUSTMENT NEEDED)
MANUAL BLADE TENSION WITH LED DISPLAY ON CONTROL PANEL
BLADE BREAKAGE SWITCH
ERGONOMICALLY POSITIONED “SWING AWAY” CONTROL PANEL
FLOOD COOLANT SYSTEM AND WASH DOWN HOSE
LASER LIGHT

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
