Dual Column BandSaw model S-40 - $RFQ

Item Number: #00035073

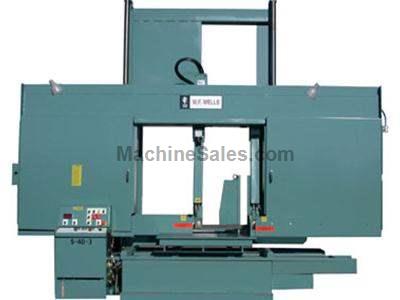

Dual Column BandSaw model S-40





Dual Column BandSaw model S-40

Price: $RFQ
Subcategory:

Bandsaws Horizontal - Dual Column - Metal

Manufacturer:  Wells
Model:  WF Wells
Condition: New

Capacity at 90°: Rectangular 40" wide x 40" high
Round 40" Diameter
Capacity @ 45°: Rectangular 24" wide x 40" high
Round 24" Diameter
Piece Part Weight Capacity: 15000 Lbs
Blade Speed Range: 115-500 SFPM
Blade Size: 2" x .063" x 29'
Bandwheel Size: 42"
Sawing Force: 0-500 Lbs
Vise: Hydraulic, 24" capacity
Blade Drive: 15 HP, 3 phase AC Vector Drive
Hydraulic Drive: 5 HP
Work Height: 28"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 3/4 gallon
Machine Weight: 9200 Lbs

STANDARD FEATURES:
* Made in USA by WF Wells
* Semi-Automatic
* 2" Bi-Metal Blade
* AC Vector Drive
* Spring Loaded Carbide Guides
* Hydraulic Vise w/ Variable Pressure
* Hydraulic Blade Tension
* Hydraulic Guide Arm Positioning
* Blade Tension Indicator
* Blade Break/Stall Switch
* Built-In Coolant System
* Hydraulic Powered Blade Brush
* TEFC Motors
* Fused Disconnect
* Automatic End-Of-Cut Shut off
* Console Controlled Blade Speed
* Feed Pressure Monitor/Regulator
* Low Voltage/Overload Protection
* Electronic Door Safety Interlocks
* Work Lights
* Safety Guards, Owners Manual

OPTIONS AVAILABLE:
* 2" Bi-Metal Blade at 6° Cant + 24" x 40" Outfeed Table (option S40-3C)
* 2-5/8" Bi-Metal Blade with 1000 Lbs saw force (option S40-4)
* Discharge Worktable, 40" W x 56" L
* Hydraulic Chip Conveyor, Auger Style
* Hydraulic Holddown, Saw Vise
* Outboard Vise with Hydraulic Holddown
* Outboard Vise
* High Speed Drive & Guides (1½" Blade) 570-3400 SFPM
* Hydraulic Powered Conveyor, 36" x 10'
* Non-Powered Conveyor 36" x 5'
* Non-Powered Conveyor 36" x 10'
* 40" wide Conveyors
