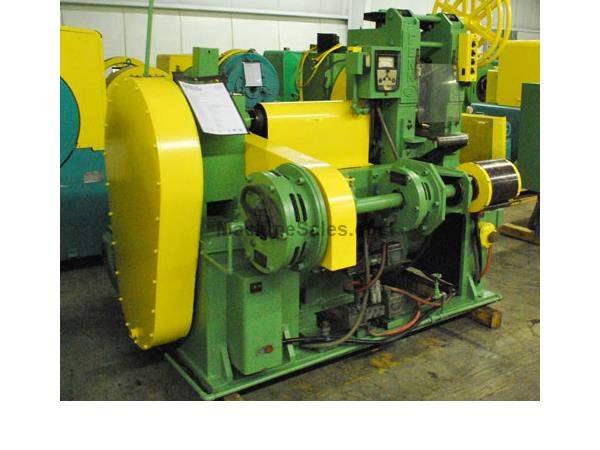

5" x 8" FENN 2 HI/4 HI WIRE FLATTENING MILL W/MILL MTD REELS - $RFQ

Item Number: #00072220
5&#034; x 8&#034; FENN 2 HI/4 HI WIRE FLATTENING MILL W/MILL MTD REELS





5" x 8" FENN 2 HI/4 HI WIRE FLATTENING MILL W/MILL MTD REELS

Stock Code:  111492
Price: $RFQ
Subcategory:

2Hi / 4Hi Rolling Mills,

Manufacturer:  Fenn
Condition: Used

SPECIFICATIONS

-MANUFACTURER: FENN

-MODEL: 051

-TYPE: 2 HI/ 4 HI WIRE FLATTENING MILL
-MILL IS CURRENTLY SET UP AS A 2 HI MILL
4 HI ASSEMBLIES ARE NOT WITH THE MILL AND MUST
BE SUPPLIED BY PURCHASER.
-ROLLS
-DIAMETER: 5" (127mm)
-FACE WIDTH: 8" (203.2)

-4 HI SPACER: 1 5/8" (41.3mm) THICK

-COLUMN SIZE: APPROXIMATELY 5" X 5" (127mm X 127mm)
-WINDOW OPENING: 7 1/4" (184.2mm) WIDE

-SCREWDOWNS: MANUAL

-BEARINGS: ROLLER TYPE
-LUBE: OIL DRIP

-DRIVE MOTOR SETUP: REEVES MOTOR DRIVE
1740 RPM
208/220/440 VOLTS
32.4/16.2/34.2 AMPS

RELIANCE MOTOR
10 HP (7.5Kw)
SIZE 442
OUTPUT RPM
-MAXIMUM: 100
-MINIMUM: 33.3
-RATIO: 25.6/1

-REDUCTION: VIA SILENT CHAIN FROM MOTOR TO PINION STAND

NOTE: MILL IS EQUIPPED WITH INPUT AND OUTPUT TABLES

-REELS
-TYPE: MILL MOUNTED DRIVEN OFF MILL VIA CHAIN USING
AN AIR OPERATED WITCHITA CLUTCH AND A SEPARATE
WITCHITA AS A HOLDING BRAKE.

-DRUM: COLLAPSIBLE TYPE 10" (254mm) DIAMETER X 8"
(203.2mm)

-VOLTAGE: 220 VOLTS 3 PHASE 60 HERTZ

This machine is listed for sale by National Machinery Exchange Inc located in Newark, New Jersey
